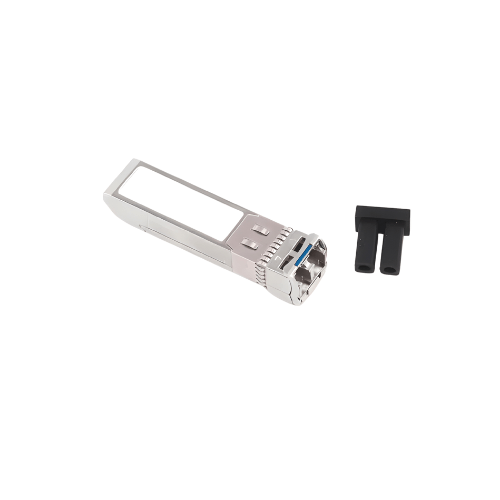

Description Features Single Power Supply 3.3 V Small Form-factor Pluggable (SFP) Digital diagnostics monitor compatible with SFF-8472 Compliant with ITU-T G.984.2 Integrated WDM filter For dual wavelength operate at 1490 nm Tx, 1310 nm Rx 1490 nm DFB continuous-mode transmitter 1310 nm burst-mode APD-TIA receiver LVTTL transmitter disable input and transmitter fault output Hot pluggable capability LVPECL compatible data input, output interface SC Receptacle optical connector Compliant with ROHS standard Applications Gigabit Ethernet Passive Optical Networks (GPON CLASS B ) – OLT side Technical Specifications Type Fiber Optic Transceivers No. of Fiber 2 Use FTTH Connector type LC Wavelength 1310 nm Max Data Rate 10.3125 Gbps Distance 24.85 mi (40 KM) DOM, DDM Support Yes Power supply 3.3 V Network Wireless Lan, Wired LAN, TCP, Ip, POE, Wi-Fi Operating temperature 32 ℉ to 158 ℉ (0 ℃ to 70 ℃) (Standard)
