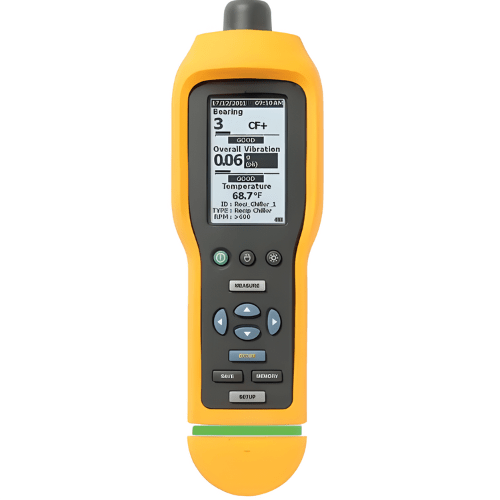

Description Features Innovative sensor design minimizes measurement variations caused by device angle or contact pressure Consistent data quality at both low and high frequency ranges Four-level severity scale assesses urgency of problems for overall vibration and bearing condition Exportable data via USB Trending in Microsoft Excel using pre-built templates Overall vibration measurement (10 Hz to 1,000 Hz) for acceleration, velocity and displacement units of measurement Crest Factor technology provides reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz Compare vibration levels with ISO-10816 severity scales and store Technical Specifications Low Frequency Range (overall measurement) 10 Hz to 1,000 Hz High Frequency Range (CF measurement) 4,000 Hz to 20,000 Hz Severity Levels Good, Satisfactory, Unsatisfactory, Unacceptable Vibration Limit 50 G peak (100 G peak-peak) A/D Converter 16-bit Signal To Noise Ratio 80 dB Low Frequency 20,000 Hz High Frequency 80,000 Hz Real Time Clock Backup Coin battery Sensitivity 100 mV / g ± 10% Measurement Range 0.01 G to 50 G Low Frequency Range (overall measurement) 10 Hz to 1,000 Hz High Frequency Range (CF measurement) 4,000 Hz to 20,000 Hz Resolution 2.204623e-5 lbs (0.01 g) Accuracy At 100 Hz ± 5 % of measured value Range -4 °F to 392 °F (-20 °C to 200 °C) Accuracy ±4 °F (2 °C) Focal Length Fixed, at to 1.50 in (3.8 cm) Frequency Range 10 Hz to 1,000 Hz Bias Voltage (to supply power) 20 V dc to 22 V dc Bias Current (to supply power) Maximum 5 mA Calibration Factory calibration required External Interfaces USB 2.0 (full speed) communication Data Capacity Database on internal flash memory Upgrade Through USB Memory Up to 3,500 measurements Electrostatic Discharge: Burst Standard EN 61000-4-2 Electromagnetic Interference Standard EN 61000-4-3 RE Standard CISPR 11, Class A Operating Temperature -4 °F to 122 °F (-20 °C to 50 °C) Storage Temperature -22 °F to 176 °F (-30 °C to 80 °C) Vibration Limit 500 G peak Battery Type AA (2) Lithium Iron Disulfide Battery Life 250 measurements Size (L x W x H) 10.13 in x 6.38 in x 3.875 in (25.72 cm x 16.19 cm x 9.84 cm) Weight 2.55 lb (1.16 kg)
