10kW Grid-Tie Kit (String Inverter)

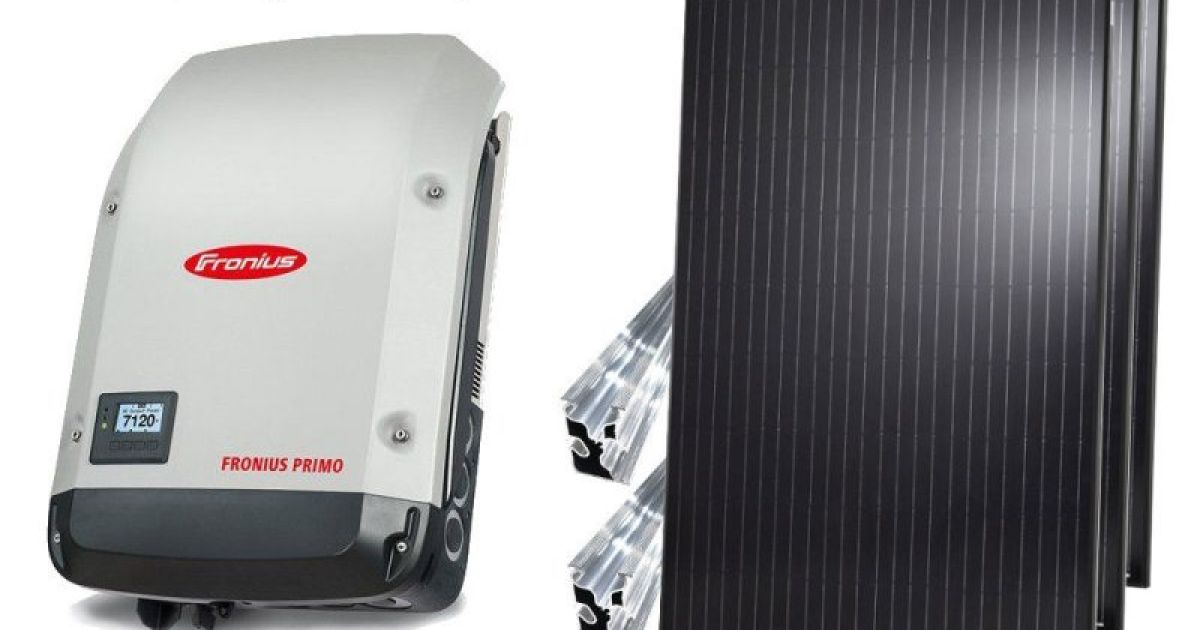

14,760 Watt in solar PV, 10,000 Watt grid-tie string inverter. Can produce up to 17,600 kWh/year (for a good south-facing roof in southern/eastern Ontario). This kit can be used for a Net-Metering system, while staying within the 10kW limit (determined by the inverter). All the parts are code-compliant for a system that when installed correctly will pass electrical inspection. This kit contains the following components: 1x Longi LR5-54HPB-410M, 410 Watt, 54-cell mono PV module, black-on-black, whole pallet of 36, black-on-black 1x Fronius Primo GEN24 10.0, 10kW output, 240V split-phase, dual-MPPT, 4,210,144,800 1x Fronius Rapid Shutdown Box Quattro, 4 strings in 2 strings out, 4,240,154 18x Kinetic Solar Rapid One Rail 15’5″, KRAPID1-185-M (each, holds exactly 4 panels in portrait) 12x Kinetic rail splice/joiner with integrated bonding washers, KJS2-MA (each) 78x Kinetic 3″ “L” Bracket Kit, with K-Nut, S.S. Bolt, washer and lock washer, KLB3-M (each) 78x Kinetic Flashing Kit with four 1/4″ x 2″ self-drilling screws, KFLK-44S (each) 8x Geocel 2300, tri-polymer roof sealant – crystal clear, tube 10.3 fl. oz., good for 50 years under UV-exposure 12x Kinetic Black End Caps for Rapid One Rail, KRCP-B (each) 66x Kinetic Mid Clamp – 30 – 46mm BLACK – with K-Nut, bolt, and integrated WEEB, KMWC3046-BM (each) 12x Kinetic End Clamp – 30mm BLACK – with K-Nut, S.S. Bolt, Washers and Lock Washers, KEC35-BM (each) 3x Kinetic WEEB Bonding clip for Kinetic Rails and Joiner, KSR-WEEB (each) 3x Kinetic Ground Lug Mount (K-Nut) with Ground Lug, KHGLUG-M (each) 2x Kinetic micro-inverter mounting kit, side-of-rail mounted, KHMNS-MA (each) 1x Kinetic Squirrel Guard Black Coated Wire Mesh 8″ Wide, KHSG-M (100 ft roll) 1x Kinetic Stainless Steel “J” Hook for Squirrel Guard, KHSG-J (100 pack, 1 per foot needed) 2x HellermannTyton PA66UV 12″ cable tie for solar PV, pack of 100, UV resistant for outdoor use, T50I0UVC2 1x Staubli / Multi-Contact PV-AZB4-EVO 2-UR, MC4 Y-connector, (1) male / (2) female, 1500V, 50A 1x Staubli / Multi-Contact PV-AZS4-EVO 2-UR, MC4 Y-connector, (2) male / (1) female, 1500V, 50A 1x MC4 extension wire, 58 feet black, MC4 connector both ends 1x MC4 extension wire, 52 feet black, MC4 connector both ends 1x MC4 extension wire, 46 feet black, MC4 connector both ends 1x MC4 extension wire, 14 feet black, MC4 connector both ends 1x MC4 extension wire, 8 feet black, MC4 connector both ends This kit contains racking for a layout of 3 rows of 12 panels in portrait orientation for a shingle roof. We can tailor the kit to exactly fit your needs for your roof, or ground mount: We can design it with more solar modules, or less, and change the roof layout to fit your roof, or change parts to fit a steel roof. Just contact us and let us know how we can help! This 10kW Grid-Tie Kit includes the major components needed to install a 10.5 kW grid-tie solar array on your roof. With electricity prices increasing, there is no better way to reduce your costs while reducing your carbon footprint than with solar PV! This system is perfect for Net-Metering! The average Canadian household consumes 12,000 kWh of electricity per year. This 10 kW grid-tie system can offset all of that electrical consumption, greatly reducing your electrical bill! For more information check out our Net-Metering article. This package includes a Fronius Primo Advanced 10 kW string inverter. String inverters are currently the most cost-effective inverters on the market, and Fronius is a top-of-the-line brand known for unparalleled reliability. For rooftops where the panels face all in the same direction, or at most two different directions, the Fronius string inverter is the best option for you. This dual-MPPT input inverter has (free) monitoring build-in, over the Web via Wifi or a wired Internet connections. Fronius inverter is fit to be mounted outdoors as well as indoors. The racking included in this kit is designed for 3 rows of 12 panels in portrait mounted on a shingle roof. We can customize the racking in this system to fit your roof: If you have roughly 600 square feet of shade free roof facing between East and West, we can design a 10 kW solar system for your roof! Black-On-Black modules: The Black-On-Black 410 Watt panels make for a great-looking system! These panels look very uniformly dark, nearly black, making for a very pleasing look on any roof! We even included black clamps and black end-plates to create a very “uniform looking” and aesthetically pleasing finish. The solar panels do not just look good, they also perform great and last a very long time (25-year warranty)! Do it Yourself! We can design your system and provide advice through the installation process. If you posses good DIY skills and are not afraid of working on a roof then a Do-It-Yourself grid tied solar installation could very well be in the cards for you: This can save quite a bit of money and make payback and Return-On-Investment significantly better! We have years of experience designing and installing system. We can even help with the application process! If you have questions give us a call or email and we’d be happy to help!
