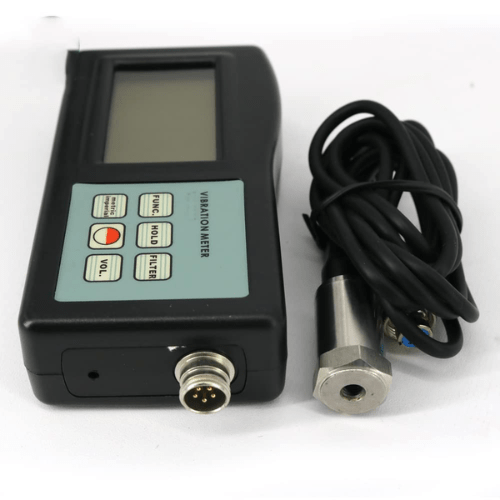

GAOTek Acceleration and Velocity Displacement Vibration Meter
$55.56
$81.67
Description Features Used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines Specially designed for easy on-site vibration measurement of all rotating machinery Individual high-quality accelerometer for accurate and repeatable measurements Wide frequency range (10Hz to 10kHz) in acceleration mode Optional headphones for use as electronic stethoscope Bearing condition monitoring function Use “USB data output” and “RS-232 data output” to connect with PC Provide “Bluetooth ™ data output” choice Technical Specifications Measuring Range Acceleration: 0.3 ft/s 2 to 1312ft/s² (0.1 mm/s2 to 400m/s²) 0.0 to 40G Equivalent Peak Velocity: 0.003 in/s to 15.75 in/s (0.01 mm/s to 400mm/s) True RMS Displacement: 3.937008e-5 in to 0.16 in (0.001 mm to 4.0 mm) 0.0016 in to 6.30 in (0.04 to 160.0 mm) Equivalent Peak-peak Frequency Range Acceleration: 10 Hz to 1k Hz; 10 Hz to 10k Hz Velocity: 10 Hz to 1k Hz Displacement: 10 Hz to 1k Hz Accuracy 5 % of Reading 2 digits Analogue Output AC Output 0 to 2.0 V Peak Full Scale (Load Resistance: Above 10k) Power Off Manual Power Off or Auto Power Off Battery Indicator Low Battery Indicator Data Output USB, RS-232, Bluetooth Operating Conditions Temperature: 32 °F to 122 °F (0 °C to 50 °C) Humidity: <90 % RH Power Supply 4 x 1.5V AAA size (UM-4) Battery Dimensions 4.88 in x 2.44 in x 1.18 in (124 mm x 62 mm x 30 mm) Weight 0.26 lbs (120 g) (Not Including Batteries)
