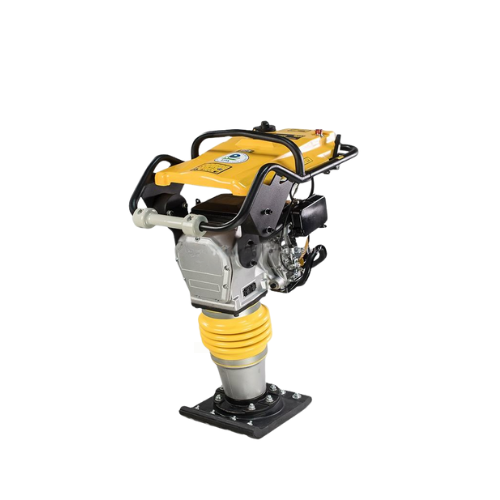

Description Features Powered by the durable Honda GXR120 petrol engine (121 cc, ~3.6 HP) — made specifically for rammers and compactors. Compact design for trench work or tight spaces, yet packs serious compaction power for cohesive and semi-cohesive soil. Lightweight for its class — typically around 86 kg dry in similar GXR120 rammers, making transport and jobsite handling easier. Consistent impact force (often ~15 kN or higher) for reliable compaction in demanding site conditions. Simple recoil start and efficient air-cooled engine improve reliability and make field maintenance easier. Technical Specifications Specification Details Engine 4-stroke, 121 cc, single-cylinder petrol engine Net Power 2.3 kW (3.1 HP) at 3600 rpm Dry Weight (Engine Only) 22.9 lb (10.4 kg) Estimated Operating Weight 190 lb (86 kg) (typical GXR120-based rammer units) Plate Size / Foot Typically, ~13 in × 11 in (330 × 280 mm) for compact models Impact Force 15 kN (common range for compact GXR120 rammers) Jumping Stroke (Impact Travel) 2.0–3.0 in (50–75 mm) — typical for soil compaction rammers Blows/Min 650–700 impacts/min (based on similar rammer models) Fuel Tank / Capacity 0.58 US qt (~0.55 L) (typical for GXR120) Engine Oil Capacity 0.31 US qt (~0.29 L) Starting System Recoil pull-start, with automatic decompression Nominal Operating Speed 3600 rpm Dimensions (Engine) 10.2 × 11.5 × 11.4 in (259 × 294 × 290 mm) Temperature / Humidity Range Usable in standard construction environments—likely 5 °C to 40 °C
