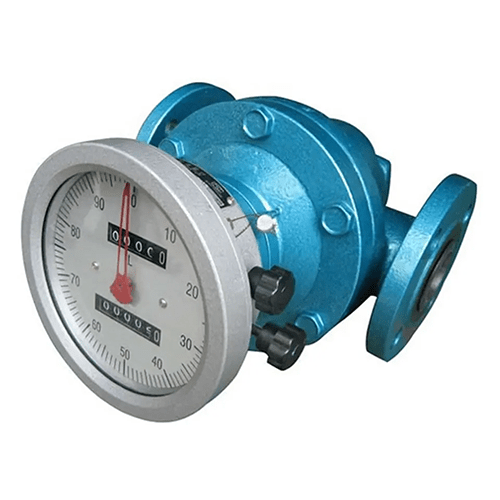

Description Overview GAOTek diesel fuel oil mechanical flow meter can measure high-precision liquids with exceptional accuracy and a wide measuring range. Its simple structure allows for easy installation and maintenance, and it operates reliably without the need for straight pipes. Choose between a mechanical or digital model, all at an affordable price point. Features Oval gear flow sensor can measure high-precision liquids Simple structure, convenient installation & maintenance High measurement accuracy and wide measuring range Changes in the density and viscosity of the fluid have little effect on the accuracy of the oval meter No straight pipes needed before and after the flow meter Low price oval gear flow meter with reliable performance Mechanical flow meter or digital oval gear flow meter Technical specification Material Cast iron/Cast steel/304 Stainless steel Class B Connection Male Thread Pressure less than 1.6 MPa Certification ISO 4064 Customized support OEM, ODM Power supply 24 V DC, 3.6 V Battery Material Stainless Steel or carbon steel Application Liquid, fuel Oil, diesel, pure water, petrol oil Measure accuracy ±0.2%, ±0.5% Output Pulse 4 mA to 20 mA, RS 485, HART Working Temperature 32.18 °F to 104 °F (0.1 °C to 40 °C)
