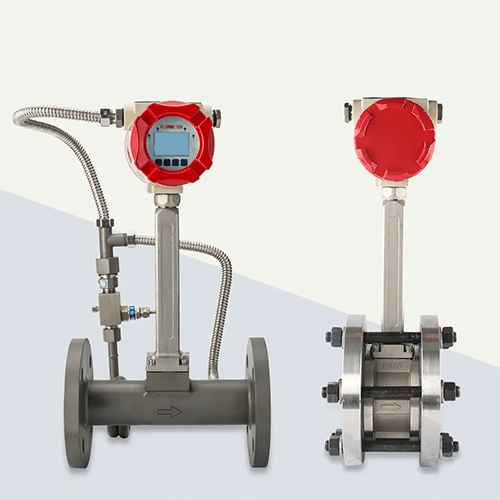

Description Overview GAOTek calibration steam flow meter has a fully isolated design with RS 485 communication for precise data transmission. This high-performance device offers exceptional temperature resistance, integrated compensation, and accuracy, making it ideal for low-pressure steam metering. Plus, its stainless steel waterproof connector ensures durability and reliability in any environment. The image is blurry. Features Fully isolated design Has RS 485 communication High temperature resistance Integrated temperature and pressure compensation Low pressure steam metering Split temperature and pressure compensation Stainless steel, waterproof connector Technical specification Measure Media Gas, Water, Steam Diameter Nominal DN 15 to DN 300 Accuracy ≤0.3% Range Ratio 1:8 to 1:30 Power Supply 24 V DC ±5%, Li battery (3.6 V DC) Signal Output 4 mA to 20 mA or frequency Interface RS 485, HART Body Materials 316 stainless steel Connection M20 x1.5 Medium Temperature -40 °F to 500 °F (-40 °C to 260 °C) or -40 °F to 572 °F (-40 °C to 300 °C)
