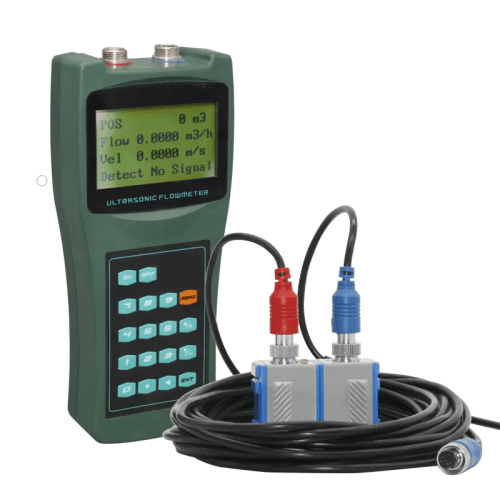

GAOTek Bracket Sensor Portable Ultrasonic Flow Meter
$56.21
$78.13
Description Overview GAOTek bracket sensor Portable Ultrasonic Flow Meter has moving parts, Wide range of measurement It has a HD LCD display plus has a d delicate button cover .Moreover it has a high-Quality Aerial Plug. Technical specification Linearity 0.5 % Repeatability 0.2 % Accuracy ± 1 % of reading at rates > 0.2 mps Response Time 0 to 999 seconds, user-configurable Velocity ±32 m / s Pipe Size DN 0.59 in to 236.22 in (15 mm to 6000 mm) Rate Units Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. Users configurable Totalizer 7-digit totals for net, positive and negative flow respectively Liquid Types Virtually all liquids Security Setup values Modification Lockout. Access code needs unlocking Display 4 x 8 Chinese characters or 4 x 16 English letters Communication Interface RS-232C, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry Transducers Model M1 for standard, other 3 models for optional Transducer Cord Length Standard 2 x 5 meters, optional 2 x 10 meters Power Supply 3 AAA Ni-H built-in batteries. When fully recharged it will last over 10 hours of operation. 100 V to 240 V AC for the charger Data Logger Built-in data logger can store over 2000 lines of data Manual Totalizer 7-digit press-key-to-go totalizer for calibration Housing Material ABS Case Size 3.93 in x 2.59 in 0.78 in (100 mm x 66 mm x 20 mm) Handset Weight 1.2 lb (514 g) with batteries
