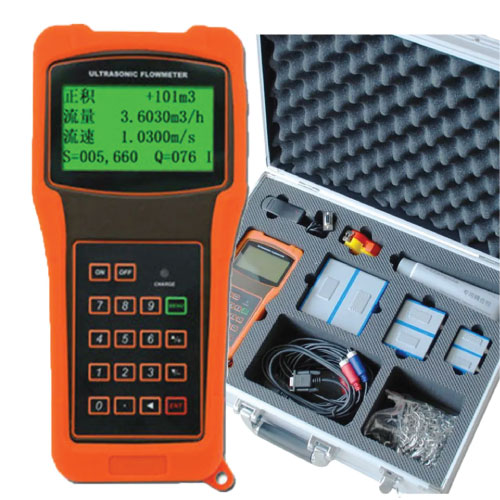

GAOTek Anti-Corrosion Smart Display Accurate Handheld Portable Ultrasonic Flowmeter
$36.16
$45.2
Description Overview GAOTek Anti-corrosion Smart Display Handheld Ultrasonic Flowmeter is enable non-contact measurement of liquid flow. The sensor installed on the outer wall of the pipe completing the measurement of the flow. The characteristic of the product is the small size, the convenient carrying and the accurate measurement Feature High Accuracy Liquid need not be conductive One unit can be measure flow in different diameter size Can be fitted in complicated pipe line since the path straightening requirements is minimal Small size and easy o carry Easy installation and reduced installation time No need short tube shutoff and no pressure loss Built-in 32K memory, and store 2000 line of measurement data Technical Specifications: Humidity Hosts: 85% RH, Sensor Protection level: IP67 Velocity 0 – 393.701 in/s (0 – 10 m/s) Data Interface RS323 serial interface for flow meter upgrade via PC Power Supply 3 built-in 1.2 V capacity 2000 mAh work for mor than 12 hours full charge Signal Output 1 channel OCT pulse output (broadband 6-1000ms, default 200ms) Pipe Material Steel, stainless steel, iron, copper, PVC, allowed eith lining Pipe inner diameter 0.59 to 236.22 in (15 to 6000 mm) Straight section The sensor installation point preferably satisfies: upstream 10D, downstream: 5D, 30D from the pump outlet Accuracy R species Water, sea water, industrial wastewater, beer turbidity 10000 ppm and small bubble content Display 48 or 416 support English and Chinese Protection Class IP66 Temperature -34.4471.11 (-30 Housing Material Fire Retardant ABS Measuring unit Meter, ft, liter, gallon, barrel, etc. Power Consumption 1 W Size in/s (244 mm) Weight 0.859 lb (3 kg)
