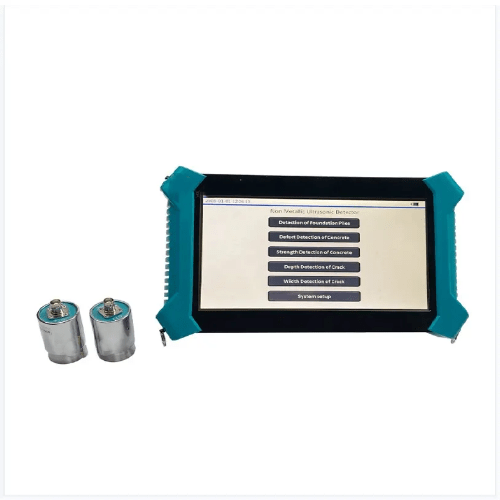

Description Overview GAOTek ultrasonic testing concrete is an instrument gives data concerning the homogeneity of the concrete, by generating pulses of sound into the concrete and measuring the time the sound to travel from the transmitter probe to the receiver probe through the material. Furthermore it is possible to have indicative data of the strength of the concrete. Technical Specifications Master control unit Built-in A8 industrial control motherboard Display 10.1 in ( 12.34 mm), high brightness, TFT color LCD capacitive screen Operational mode Touch screen Storage mode Built-in Electronic Hard Disk(>8GB) Large Capacity U Disk Data transmission mode Wireless Cloud Transport(Options) Channel number 1 transmit 1 receive Trigger mode Signal triggering Sampling period 0.05 ms to 409.6 ms Acoustic time accuracy 0.05 s Acoustic time range 1677700 s Measuring range: ( 0 in to 0.34 in) 0 mm to 10 mm Dynamic range(dB) 0.5 dB Emission voltage(V) 250 V, 500 V and 1000 V gears adjustable Communication interface UBS, Bluetooth, Wifi Working hours(h) More than 8 Power supply mode 220 V Temperature 4 °F to 96 °F (10 ℃ to 40 ℃) Host size(mm) 11.81 in x 7.87 in x 2.16 in (300 mm x 200 mm x 55 mm)
