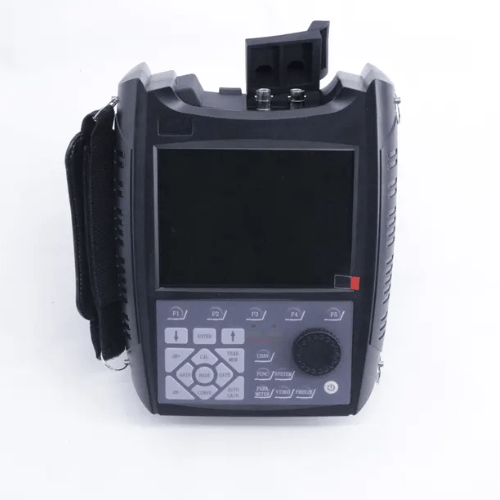

GAOTek Digital Ultrasonic Flaw Detector
$49.63
$82.39
Description Features High right electroluminescent, strength light, weak light and sunlight viewable 32 independent sets of parameters can be set Large capacity Li battery, low power consumption design, 20 hrs run time Can be connected to the printer, print inspection report and wave Has auto-calibration function for normal probe, angle probe, convenient to use Square wave pulse generator, amplitude and pulse width can be adjusted, suitable to test the defects of work piece with different materials and depth Peak value in the gate can be captured automatically DGS(AVG) curve suitable to inspect forged piece etc A-scan and B-scan to be selected Based on the curve surface diameter to calibrate the flaw location by the curve surface calibration function. Technical Specifications Scan Range 0 in to 5.98 in (0 mm to 10000 mm) Velocity range 1000 m/s to 9999 m/s Gain 0 dB to 110 dB Pulse Pattern square resolution > 40 dB Humidity 20 % Linear rejection 0 % to 80 % Pulse width 50 ns to 100 ns Display delay -20 s to 3400 s Sensor zero offset 0 s to 99.99 s Repetition rate 10 Hz to 1000 Hz Vertical linearity deviation < 3 % Weight 4.87 lb (1.7 kg) Size 9.87 in x 2.89 in x 7.674 in (250 mm x 80 mm x 150 mm)
