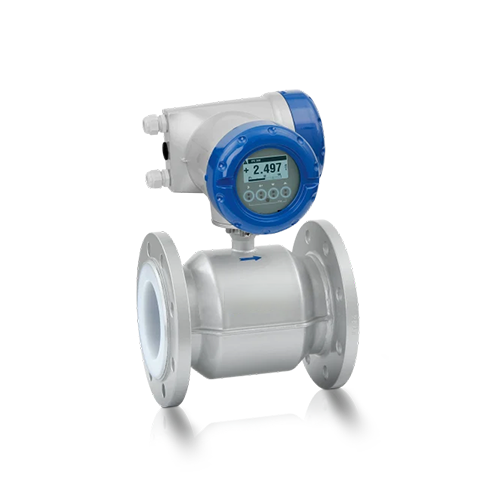

Description Overview Electromagnetic flowmeter for advanced process and custody transfer applications with aggressive liquids or abrasive media. The high-end flowmeter is particularly suitable for critical applications requiring high accuracy and many diagnostic functions. It enables reliable measurement even under very harsh process conditions with temperatures up to 180°C / 356°F, low conductivities (≥1 µS/cm), high solid contents (up to 70%) and high pressures (up to 1500 bar / 21751 psi). For custody transfer applications, the OPTIFLUX 4300 has a wide range of certifications including OIML R49 and R117 or MI-001 and MI-005. It can also be used for flow measurement in district heating networks requiring MI-004 approval. The OPTIFLUX 4300 is available in a wide diameter range up to DN3000 / 120″. Its virtual reference option allows for a very cost-saving measuring mode without additional grounding rings – particularly when it comes to large diameters. Installation in measurement chambers subject to (constant) flooding is possible with the IP68 / NEMA 6P rated version. The meter is approved for use in hazardous areas and offers various digital communication options. A full on-site verification of the OPTIFLUX 4300 without process interruption can be carried out using the OPTICHECK service tool.   Features Bi-directional flow measurement over a wide dynamic range (turn down ratio: 1000:1) Available with virtual reference grounding method: no grounding rings needed Extensive flowmeter and process diagnostics (incl. NE 107) For hazardous areas: ATEX, IECEx, NEPSI, FM, CSA, EAC, INMETRO Standard measurement accuracy: ±0.2% or ±1mm/s of measured value (MV) For custody transfer: OIML R49, OIML R-117; MI-001, MI-004, MI-005 PTFE, PFA, ETFE, hard rubber, soft rubber or PU liner: excellent chemical and abrasion resistance Wide range of electrode materials Special designs, sizes, inner diameters and liner thicknesses on request Optional external coatings for offshore or subsoil installation (also acc. to ISO 12944) Full bore design: No moving parts, no wear, no pressure loss On-site verification of flowmeter with OPTICHECK service tool   Technical Specifications Process pressure max. 40 barg or 580 psig (higher on request) Process temperature -40 °F to 356 °F (-40 °C to 180 °C) Analogue outputs 4 mA  to 20 mA Discrete outputs Limit switches, Pulse, Frequency, Status
