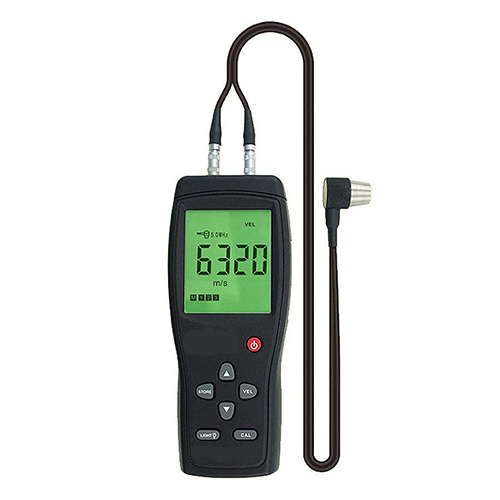

Digital Ultrasonic Thickness Gauge for Metals – GAOTek
$65.9
$92.26
Description Overview GAOTek Digital Ultrasonic Thickness Gauge for Metals is a non-destructive handheld instrument designed to measure the thickness of metal and steel surfaces with high accuracy. With a wide measuring range of 0.05 in to 8.86 in (1.2 mm to 225 mm) and an accuracy of ±(1%H 0.004 in), this gauge is ideal for detecting material loss due to wear, corrosion, or erosion. Its compact design, easy-to-read digital display, and durable build make it suitable for industrial inspections, automotive testing, shipbuilding, and quality control applications. Features Wide measuring range from 0.05 in to 8.86 in (1.2 mm to 225 mm) High accuracy: ±(1%H 0.004 in) (H = thickness of test piece) Non-destructive testing for steel and other metals Clear LCD digital display for fast and reliable readings Lightweight, compact design for convenient field use Built for industrial inspection, quality control, and maintenance Technical Specifications Measuring Range 0.05 in to 8.86 in (1.2 mm to 225 mm) Accuracy ±(1%H 0.004 in) (H = thickness of test piece) Material Plastic housing Color Black Operating Temperature 32 °F to 104 °F (0 °C to 40 °C) Weight Not provided — can be confirmed if required Dimensions 5.91 in × 3.17 in × 1.34 in (150 mm × 80.5 mm × 34 mm) Measuring Range 0.05 in to 8.86 in (1.2 mm to 225 mm)
