Digital Ultrasonic Metal Thickness Gauge Through Coating Tester – GAOTek

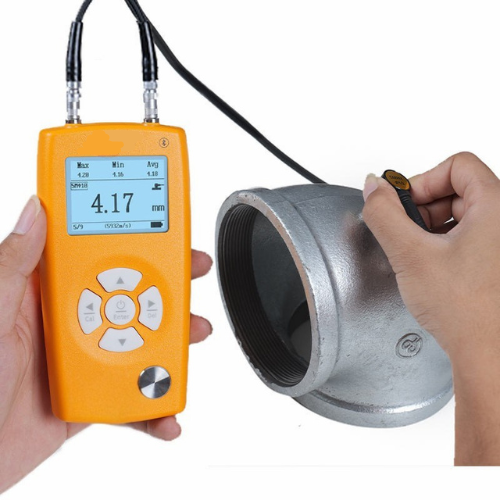

Description Overview GAOTek offers a portable and reliable ultrasonic thickness gauge designed for non-destructive measurement of metals, glass, ceramics, and plastics. This product features an accuracy of ±0.5%H and operates within a sound velocity range of 1000~9999 m/s. It comes with a 240×160 dot matrix LCD display, supports mm/inch units, and is powered by two AA alkaline dry batteries. With a compact host size of 5.59 in × 2.83 in × 1.10 in and a weight of about 230g, this device is lightweight yet durable. It functions effectively in working temperatures from -10°C to 50°C and can be stored at temperatures ranging from -10°C to 60°C. The product supports OEM and ODM customization, making it suitable for varied industrial applications. The package includes a single unit measuring 7.48 in × 5.91 in × 3.15 in with a gross weight of 0.450 kg. This device is widely used for accurate thickness measurement through coatings, providing consistent performance in different environments without condensation issues.   Features Accuracy Measurement Range Measurement Modes Automatic Gain Adjustment High-Sensitivity Dual-Crystal Probe Smart Probe Recognition Resolution Sound Velocity Range Coating Penetration Mode Data Storage Bluetooth App Connectivity Display Power Supply Form Factor Environmental Range   Technical Specifications Accuracy ±0.5%H Type Ultrasonic thickness gauge Material Plastic Item Weight About 230g Warranty 1 year Customized Support OEM, ODM Product Name Digital Ultrasonic Metal Thickness Gauge Through Coating Tester Application Non-destructive for metal, glass, ceramics, and plastics Sound Velocity Range 1000~9999 m/s Display 240 × 160 dot matrix LCD Unit mm/inch Power Supply 2 × AA alkaline dry batteries Host Size 5.59 in × 2.83 in × 1.10 in Host Weight About 230g
