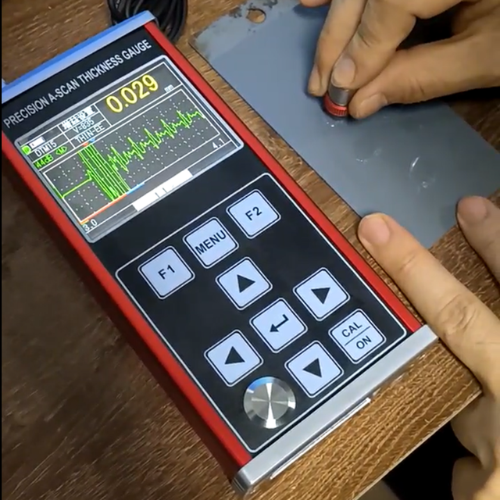

Digital Precision Ultrasonic Thickness Gauge for Steel – GAOTek

Description Features Extra-wide measuring range: 0.0059–70.8661 in Ultra-high precision with 0.000039in resolution Measures both ultra-thin and ultra-thick components Penetrates coatings to measure substrate thickness Supports coating thickness measurement with A/B waveform scanning Compatible with single crystal, twin crystal, and high-temperature probes Suitable for both metal (steel, aluminium, etc.) and non-metal materials (plastic, nylon) Ideal for one-sided access applications OEM/ODM customization support   Technical Specifications Measurement Range 0.0059 in – 70.8661 in (0.15 mm –1800 mm) Measurement Resolution 0.01 in / 0.001 in / 0.0001 in (0.1 mm / 0.01 mm / 0.001 mm) Material Sound Velocity Range 400 m/s – 19,999 m/s Operating Temperature –10 °C to 60 °C (14 °F to 140 °F) (Humidity < 90%) Dimensions 7.244 in × 3.346 in × 1.259 in (184 mm × 85 mm × 32 mm) Weight 0.551 lb (250 g) Power Supply 3 × AA lithium-ion batteries Display Screen 3.5-inch colour screen
