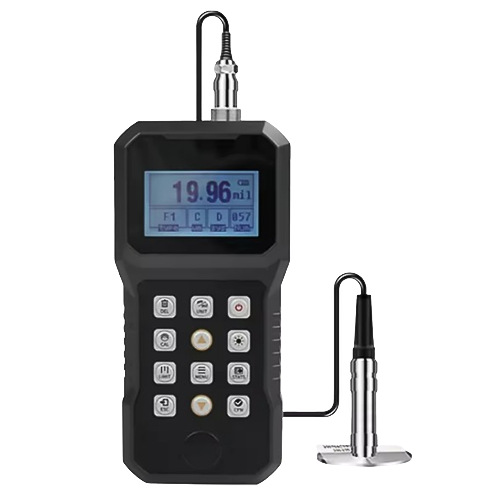

Digital Magnetic Induction Coating Thickness Gauge for Iron, Cobalt and Aluminium – GAOTek

Description Features Dual measurement (magnetic induction & eddy-current) for fe & nfe substrates. Compatible with multiple probes (f400, f1, f1/90°, f10, f20, fn). Durable plastic housing, aa battery powered, portable. 1-year warranty with oem customization. Measures specialized coatings (iron, cobalt, nickel, anodized aluminum). Fast, precise, non-destructive field measurements.   Technical Specifications Specification Details Measurement Principle Magnetic induction (for ferrous metals) and eddy current (for non-ferrous) Probe Options Up to 10 interchangeable probes (e.g., F400, F1, F1/90°, F10, etc.) Measuring Range (Ferrous with F10) 0 to 10,000 μm (0 to 10 mm) – depends on probe Accuracy (1-Point Calibration) Typically, ± (2% H 1 μm) or similar depending on probe Accuracy (2-Point Calibration) Improved to ± (1% H 1 μm) or similar depending on probe Measurement Modes Continuous & Single-point; Direct & Group modes Statistical Functions Mean, Max, Min, Count, Standard deviation Memory Capacity 5 groups, each holding up to 100 readings Power Supply Rechargeable lithium battery Display and Interface Durable LCD, auto sleep/shutdown, PC data transfer via RS-232 Enclosure and Durability Metal housing, dust and EMI protected, industrial-grade build Operating Conditions 0 to 40 °C; 20–90% RH Temperature Range (Probe Specific) Up to 300 °C for specialized high-temperature probes Automatic Functions Auto sleep, PC connectivity, statistical processing, multi-language UI (source brand-level features implied) Power Source Type (Unit) AA Battery – inferred from generic casing details
