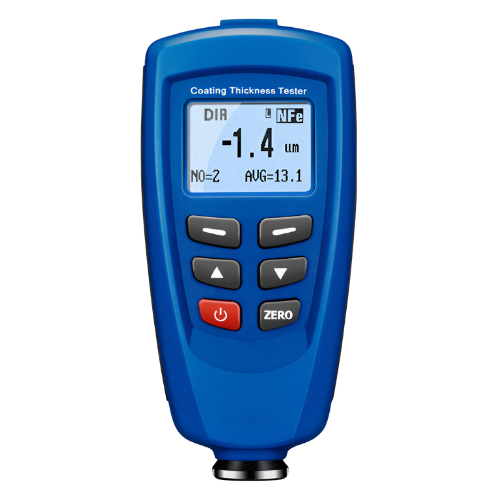

Digital DT – 156 Paint Coating Thickness Gauge Meter Tester – GAOTek

Description Features Dual measurement (magnetic induction & eddy-current) with auto/manual switch. Range 0–1250 µm, tolerance ± (3% 1 µm), resolution 0.1 µm. CONTINUOUS/SINGLE modes & DIRECT/GROUP modes, stores 400 readings. Statistical functions: average, max, min, count, standard deviation. USB connectivity, backlit LCD, alarms, error & low-battery alerts. Compact (110×50×23 mm), lightweight (100–110 g), V-groove probe for cylindrical parts.   Technical Specifications Specification Details Measurement Principle Dual technology: magnetic induction (ferrous) and eddy current (non-ferrous) Measuring Range 0 to 1250 µm (0 to 49.2 mils) Accuracy (F probe) ± (3 % H 1 µm) (for ≤850 µm), ±5 % (for 850–1250 µm) Accuracy (N probe) ± (3 % H 1.5 µm) (for ≤850 µm), ±5 % (for 850–1250 µm) Resolution 0–50 µm: 0.1 µm; 50–850 µm: 1 µm; 850–1250 µm: 0.01 mm Minimum Curvature Radius F: convex 1.5 mm (0.06 in); N: convex 3 mm (0.12 in) Minimum Measuring Area Diameter F: Ø 7 mm (0.28 in); N: Ø 5 mm (0.20 in) Critical Substrate Thickness F: 0.5 mm (0.02 in); N: 0.3 mm (0.012 in) Measurement Modes Continuous or Single; Working modes: Direct and Group Statistical Functions Mean, Max, Min, Count, Standard Deviation Memory Capacity Total 400 readings (80 Direct 320 Group) Data Interface USB connection for PC software Auto Power-off and Battery Alerts Auto-shutdown (can be disabled); Low battery & error indicators Operating Temperature 0 °C – 40 °C (32 °F – 104 °F) Relative Humidity 20 % to 90 % RH Product Weight ~100 g (≈ 3.5 oz) Dimensions (H × W × D) 113.5 mm × 54 mm × 27 mm (4.47 in × 2.13 in × 1.06 in)
