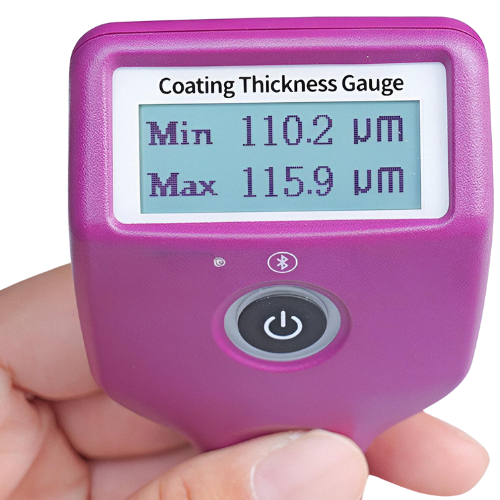

Digital Auto Car Paint Thickness Meter Film Tester Coating Thickness Gauge – GAOTek
$53.88
$100.76
Description Features Compact split-probe for tight spaces. Auto-detects ferrous, aluminium, galvanized & non-metallic substrates. Tri-colour indicator for thickness condition. Wide measuring range: 0–3,500 µm (up to 5,000 µm). Ruby-tipped digital probe for high precision. Fast 0.3 s readings, 50 hrs battery, Bluetooth app reporting. Technical Specifications Specification Details Measurement Principle Hall effect for ferrous (Fe) / Eddy current for non-ferrous (Al) Probe Type Split-type external cable probe with ruby tip Measuring Range 0 to 5000 µm (0 to 5 mm ≈ 0 to 0.20 in) Resolution 0.1 µm (0–99.9 µm); 1 µm (100–5000 µm) Accuracy 0–3000 µm: ± (3% H 2 µm); 3000–5000 µm: ± (5% H 2 µm) Measuring Interval ~0.3 seconds per measurement Min. Measuring Area Diameter Ø = 15 mm ≈ 0.59 in Min. Radius of Curvature Convex 5 mm (0.20 in) / Concave 25 mm (0.98 in) Min. Substrate Thickness Fe: 0.2 mm (0.008 in); Al: 0.05 mm (0.002 in) Display 128 × 48 dot-matrix LCD Power Supply Rechargeable lithium battery, 3.7 V @ 1200 mAh via Type-C Data Transfer Bluetooth, compatible with mobile app for report export Operating Temperature –20 °C to 50 °C (–4 °F to 122 °F) Storage Temperature –20 °C to 60 °C (–4 °F to 140 °F) Size (Host) 101 mm × 62 mm × 28 mm (3.98 in × 2.44 in × 1.10 in) Weight (Including Battery) 76 g (≈ 2.68 oz)
