Digital Auto Car Paint and Coating Thickness Gauge – GAOTek

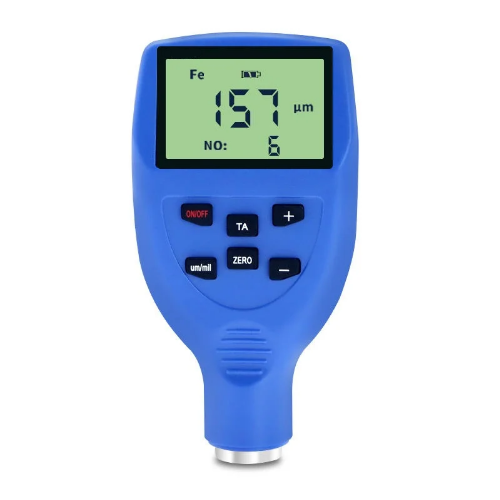

Description Overview This device is a digital gauge designed for measuring the thickness of coatings on various surfaces, particularly car paint. It uses a non-destructive method to measure the thickness of non-magnetic coatings (like paint) on magnetic substrates (like steel) and insulating coatings on non-magnetic substrates (like aluminium). The device is portable and user-friendly, making it suitable for a range of applications, including automotive detailing, quality control, and inspecting used vehicles for hidden damage or repainting. This product is a reliable tool for quickly and accurately assessing the thickness of films and coatings.   Features Non-destructive measurement of coating thickness. Suitable for measuring non-magnetic coatings on magnetic substrates and insulating coatings on non-magnetic substrates. Portable and user-friendly design. Ideal for automotive detailing, quality control, and vehicle inspection.   Technical Specifications Measuring Range 0 μm to 5000 μm（0 mm to 5mm）( 0 in to 0.197 in ) Using Environment 0 ℃ to 50 ℃ (32 ° F to 122 ° F) and 20% RH — 90% RH, not strong magnetic place. The Thinnest Matrix 0.4 mm (0.016 in) Measurement Accuracy ± ( 3% H 2 μm ) Resolution Ratio 0.1 μm or 1 μm Minimum Curvature Convex 5 mm (0.20 in); concave 25 mm (0.98 in) Minimum Matrix 18 mm x 15 mm (0.71 in × 0.59 in) Power Three (7) alkaline battery Size 126 mm x 64 mm x 28 mm (4.96 in × 2.52 in × 1.10 in) Weight 106 G  (3.74 oz) (excluding battery)
