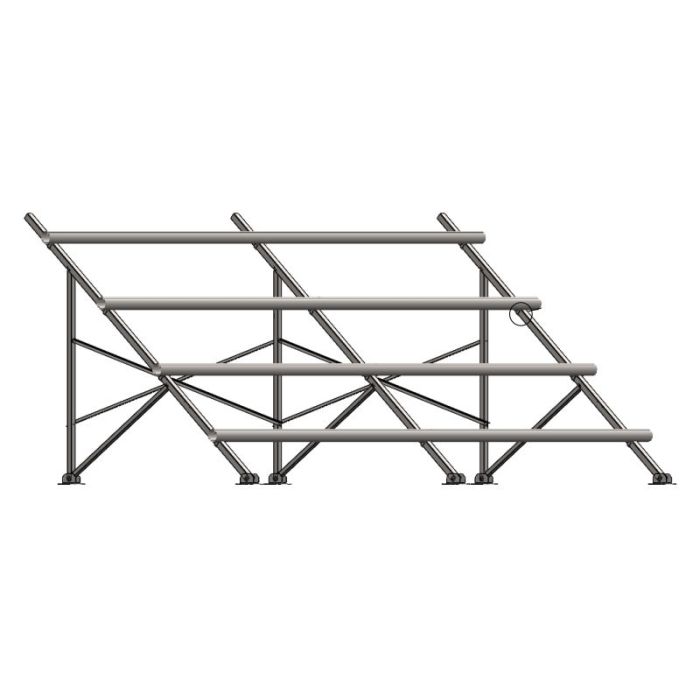

This is Kinetic’s “larger panel” ground mount, with modules installed in portrait orientation. Solar PV modules are getting ever wider/larger! This ground mount is meant to accommodate panels from 1061mm x 2450mm to 1160mm x 2450mm. There are two exceptions: the 10- and 32-panel versions can only handle modules up to 1144mm wide. Kinetic’s ground mount is made to last! With a hot-dip galvanized steel frame, aluminum rails, and stainless-steel hardware. These ground mounts put the solar panels at a fixed 40-degree tilt-angle (great for year-around production for grid-tie systems in southern Canada!). These ground mounts come in increments of 2 panels, and panels are installed in portrait orientation (short side down). The open structure with minimal shading to the backside of panels also makes this ground mount work well for bi-facial modules. This ground mount is designed for high-wind areas, and supports a snow load up to 2.5 kPa (Ground Snow Load) / 1.04 kPa (ULS), and wind load up to 1.0 kPa (hourly base wind pressure). These ground mounts drop-ship directly from Kinetic Solar in Toronto via truck-freight. Shipping cost is not included in the price. So even for pickup from our Kemptville warehouse there will be a shipping fee. The foundation and foundation hardware is not included. Features Economical! Easy to install Galvanized steel construction Handles high wind and snow loads! Works for all module types that fit the size requirements Available in sizes up to 32 panels, in 2-panel increments
