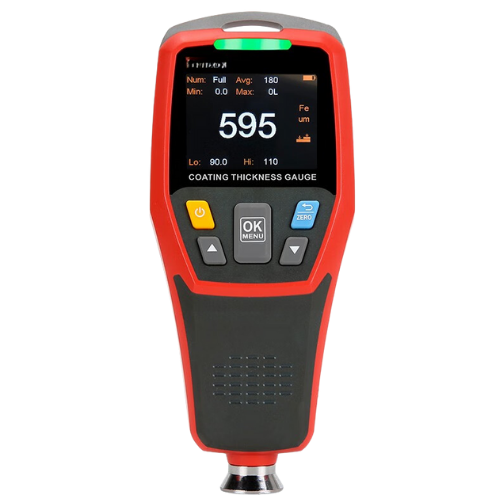

Coating Thickness Gauge Automotive Paint Film Thickness Tester – GAOTek
$69.49
$118.13
Description Features Measures 0–1250 µm, ± (3 % h 1 µm), resolution 0.1/1 µm, continuous & single measurement with stats. 3-color led & audio alarm for quick thickness check. 2″ tft lcd, auto-rotate, adjustable brightness, auto power-off. Auto substrate detection (fe/nfe) for correct measurement. Stores 500 readings, usb export for pc analysis. Powered by 2 × aa batteries, low-battery alert, ce/ukca certified. Technical Specifications Specification Details Measurement Principle Magnetic induction (ferrous) & eddy current (non-ferrous) Measuring Range 0 to 1250 µm (≈ 0 to 49.2 mil) Accuracy ± (3% H 1 µm) Resolution 0.1 µm (0–99.9 µm); 1 µm (100–1250 µm) Measurement Method Single / Continuous Measurement Modes Max / Min / Average Display Type 2.0-in TFT LCD (320 × 240 px) Alerts and Indicators Audio alarm, LED alarm, low-battery indication, quick test mode Display Features Auto-rotatable screen, LCD brightness control, unit conversion (µm/mil) Data Storage and Interface Stores 500 groups; USB communication with PC analysis software Auto Power-Off Yes (auto shutdown) Power Supply 2 × R03 (AAA) batteries, 3 V total Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Product Weight (Without Batteries) ~175 g (≈ 6.17 oz) Dimensions (L × W × H) ~153.5 mm × 64.5 mm × 41 mm (≈ 6.04 in × 2.54 in × 1.61 in)
