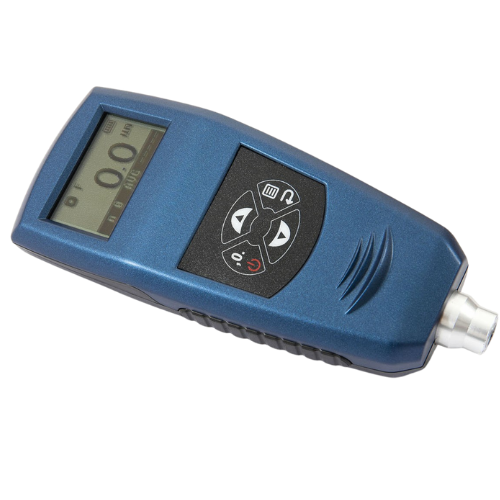

Description Features Magnetic induction measurement for non-magnetic layers on ferrous substrates. Measuring range 0–1250 µm (0–50 mil). Resolution 0.1/1 µm, accuracy ±2 µm (0–100 µm) or ≤2.5%. Graphic lcd display, stores up to 500 readings. Powered by 3 × aaa batteries, portable (150×50.5×29 mm, 110 g). Zero/one-point calibration, stats, oem options, 2-year warranty. Technical Specifications Specification Details Measurement Principle Magnetic induction (non-magnetic coatings on magnetic substrates; ISO 2178 / ASTM 07091) Measuring Range 0 to 1250 µm (0 to 50 mil) Resolution 0–999 µm: 0.1 µm; ≥1000 µm: 1 µm Accuracy 0–100 µm: ±2.0 µm; 101–1250 µm: ≤ 2.5% Data Memory Stores up to 500 readings Display Type Graphic LCD (backlit) Power Supply 3 × AAA batteries (1.5 V each) Operating Temperature 0 °C to 50 °C (32 °F to 122 °F) Product Weight Approx. 110 g (≈ 3.88 oz) Dimensions (L × W × H) 150 mm × 50.5 mm × 29 mm (5.91 in × 1.99 in × 1.14 in)
