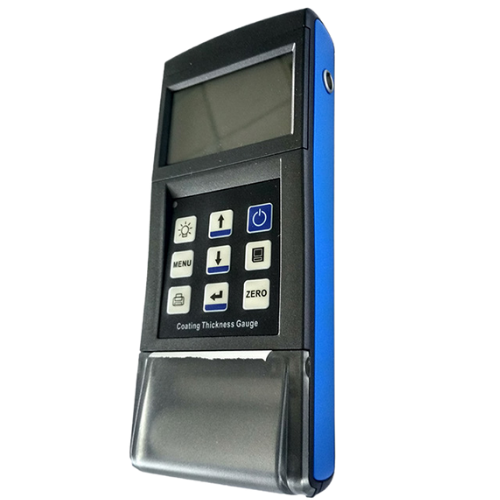

Car Paint Film Coating Thickness Tester Instrument Thickness Gauge – GAOTek

Description Features Dual F/N measurement for magnetic & non-magnetic substrates. Range: 0–1500 µm; chrome 0–40 µm (N mode). High precision with 0.1/1 µm resolution & calibration. Single or continuous measurement modes. Stores 500 values with stats & printer support. Portable, Li-ion battery, 175×77×35 mm, 230 g, 1-year warranty.   Technical Specifications Specification Details Measurement Principle Magnetic induction (F) & eddy current (N) Measuring Range F: 0 to 1500 µm (0 to 59.1 mil); N: 0 to 1500 µm (0 to 59.1 mil); Chrome plating on copper via N: 0 to 40 µm (0 to 1.6 mil) Resolution 0.1 µm or 1 µm (0.000004 in or 0.00004 in) Indication Error (Accuracy) F: ± (3% H 1 µm); N (two-point calibration): ±[(1–3)% H 1 µm] Minimum Curvature Radius F: convex 1.5 mm (0.059 in); N: convex 3 mm (0.118 in) Minimum Measuring Diameter F: 7 mm (0.276 in); N: 5 mm (0.197 in) Critical Substrate Thickness F: 0.5 mm (0.020 in); N: 0.3 mm (0.012 in) Memory Capacity and Features Stores 500 readings; supports statistical functions (Mean, Max, Min, Count, Std. Dev.) Thermal Printing Capability Supports thermal printing for instant report output Power Supply Rechargeable lithium-ion battery (2 × 3.7 V) Product Weight 320 g (≈11.29 oz) Dimensions (L × W × H) 198 mm × 82 mm × 30 mm (7.80 in × 3.23 in × 1.18 in)
