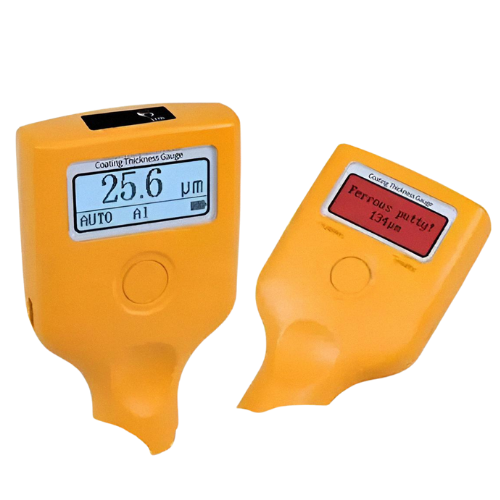

Description Features Compact split-probe for narrow or curved areas. Tricolour LEDs indicate thickness condition. Auto substrate recognition for ferrous & non-ferrous. Measuring range up to 1500–3500 µm (variant-based). Fast 0.3 s response, type-c rechargeable, 50 hrs battery. Alerts, auto power-off, Bluetooth app connectivity. Technical Specifications Specification Details Measurement Principle Hall effect for ferrous (Fe); eddy current for non-ferrous (Al) substrates Probe Type Integrated probe with ruby tip Measuring Range 0 to 5000 µm (0 to 5 mm ≈ 0 to 0.20 in) Resolution 0.1 µm / 1 µm / 10 µm (depending on range) Accuracy 0–3000 µm: ± (3% H 2 µm); 3000–5000 µm: ±(5% H 2 µm) Unit Display µm or mil selectable Measuring Interval 0.5 seconds per measurement Minimum Measuring Area Diameter = 25 mm (≈ 1 in) Minimum Radius of Curvature Convex: 5 mm (0.20 in); Concave: 25 mm (0.98 in) Minimum Substrate Thickness Fe: 0.2 mm (0.008 in); Al: 0.05 mm (0.002 in) Display Type 192 × 64 dot-matrix LCD Power Supply Rechargeable lithium battery, 3.7 V / 1200 mAh Data Transfer Bluetooth connectivity Operating Temperature –20 °C to 50 °C (–4 °F to 122 °F) Storage Temperature Range –20 °C to 60 °C (–4 °F to 140 °F) Host Size 108 mm × 70 mm × 31 mm (4.25 in × 2.76 in × 1.22 in) Weight (Including Battery) 88.8 g (≈ 3.13 oz)
