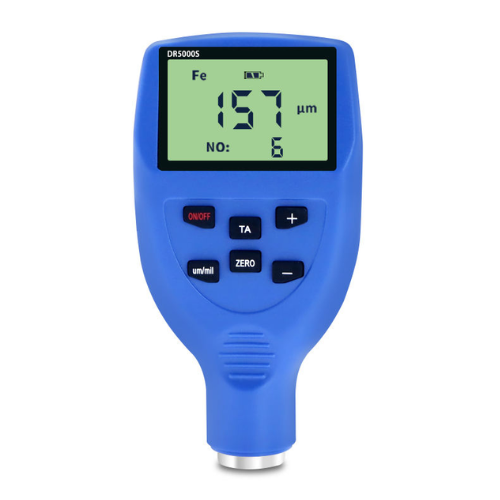

Auto Fe Paint Coating Thickness Gauge (Car Paint Thickness Meter) – GAOTek
$45.43
$87.68
Description Features Ultra-Wide Range: 0–5000 µm Reliable Accuracy: ± (3 %H 2 µm) Fine Resolution: 0.1 µm / 1 µm Compact & Light: ~106 g Magnetic Principle: Thin substrate ≥ 0.4 mm OEM & Warranty Support: Custom branding 1-year coverage Technical Specifications Specification Details Measurement Principle Magnetic induction Measurement Range 0 to 5000 µm (0 to 5 mm) Accuracy / Error Range ±(3% H 2 µm) Resolution 0.1 µm or 1 µm Thinnest Substrate 0.4 mm (≈ 0.016 in) Minimum Measurement Surface 18 mm × 15 mm (0.71 in × 0.59 in) Minimum Curvature Radius Convex: 5 mm (0.20 in); Concave: 25 mm (0.98 in) Memory Capacity Up to 2000 readings (10 groups) Calibration Options Zero-point and two-point calibration Test Modes Single measurement & continuous Display Features Large backlit LCD; screen rotation/inversion; buzzer prompt Substrate Detection Automatic ferrous and non-ferrous identification Data Connectivity Optional computer connection for printing/storing Low Voltage Indication Yes Power Supply 3 × AAA alkaline batteries Operating Temperature 0 °C to 50 °C (32 °F to 122 °F) Relative Humidity 20% RH to 90% RH Product Weight (Without Batteries) 3.74 oz (106 g) Dimensions (L × W × H) 5.0 in × 2.52 in × 1.10 in (126 mm × 64 mm × 28 mm)
