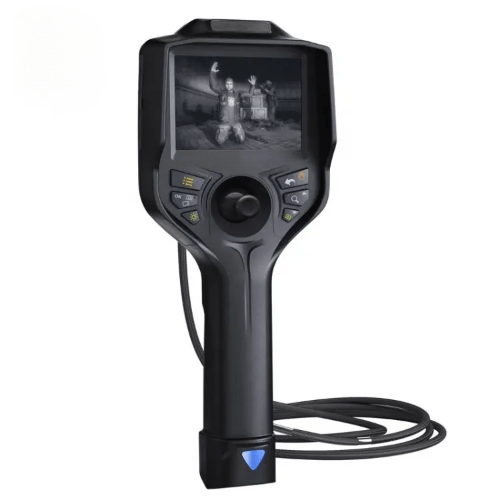

GAOTek Endoscope Borescope Inspection Camera
$ 58.43
Description Overview Gaotek endoscope borescope inspection camera are a branch of non-destructive testing and a dedicated detection technology. Suitable for inspection and observation of high temperature, toxic, nuclear radiation and places that are invisible to the human eye (eg automotive assembly, automotive casting, engines, pipes, mechanical parts, pressure vessels, power systems, wind power, chemical, mechanical equipment), railway locomotives, etc. This product can achieve non-destructive testing without disassembly or destruction of assembly and equipment stop operation, can greatly improve the detection efficiency and equipment safety performance. Technical Specification Camera 1,000,000 pixels DOF 0.19 in x 1.96 in (5 mm to 50 mm) and 0.03 in x 3.93 in (1 mm to 100 mm) and 0.39 in x 3.93 in (10 mm to 100 mm) and 0.78 in x 3.93 in (20 mm to 120 mm) FOV 80°/120° Light Source LED (optional: optic fiber) Illuminance It can be up to 20000 Lx Tube Length 39.37 in to 78.74 in (1.0 m to 2.0 m) (customized for other length) Protecting Device of Durability buffer protection device between tube and handle Articulation 360° joystick control Bending Angle Maximum: 190°, Minimum: 100° Probe Positioning Damping positioning (optional: articulation lock device) Display 3.5 in (88.9 mm) TFT LCD, (optional: 5.7 in display) Image Resolution 1280 pixels × 720 pixels Outer Case Material Anti-fall engineering alloy material IP Level Probe/tube: IP 67 Temperature Indication High temperature alarm 5.7 in monitor available Structure Hand-held integrated design Image/Video Format JPEG/MOV Data Port video output, Micro USB port Working Time ≥8 hrs Battery Capacity 3.7 V, 3200 mAh × 2 Power Charge DC 5 V, maximum current: 1 A Compatibility Interchangeable monitor and tube with different diameters Storage Standard TF card: 16 GB, Maximum: 32 GB Power Supply Detachable lithium batteries Standard Configuration Instrument case/ videoscope/ battery card reader/ TF card/charger/ USB cable/ manual Probe Diameter 113 in (2.8 mm) Weight 1.21 in to 1.76 lb (550 g to 800 g)
