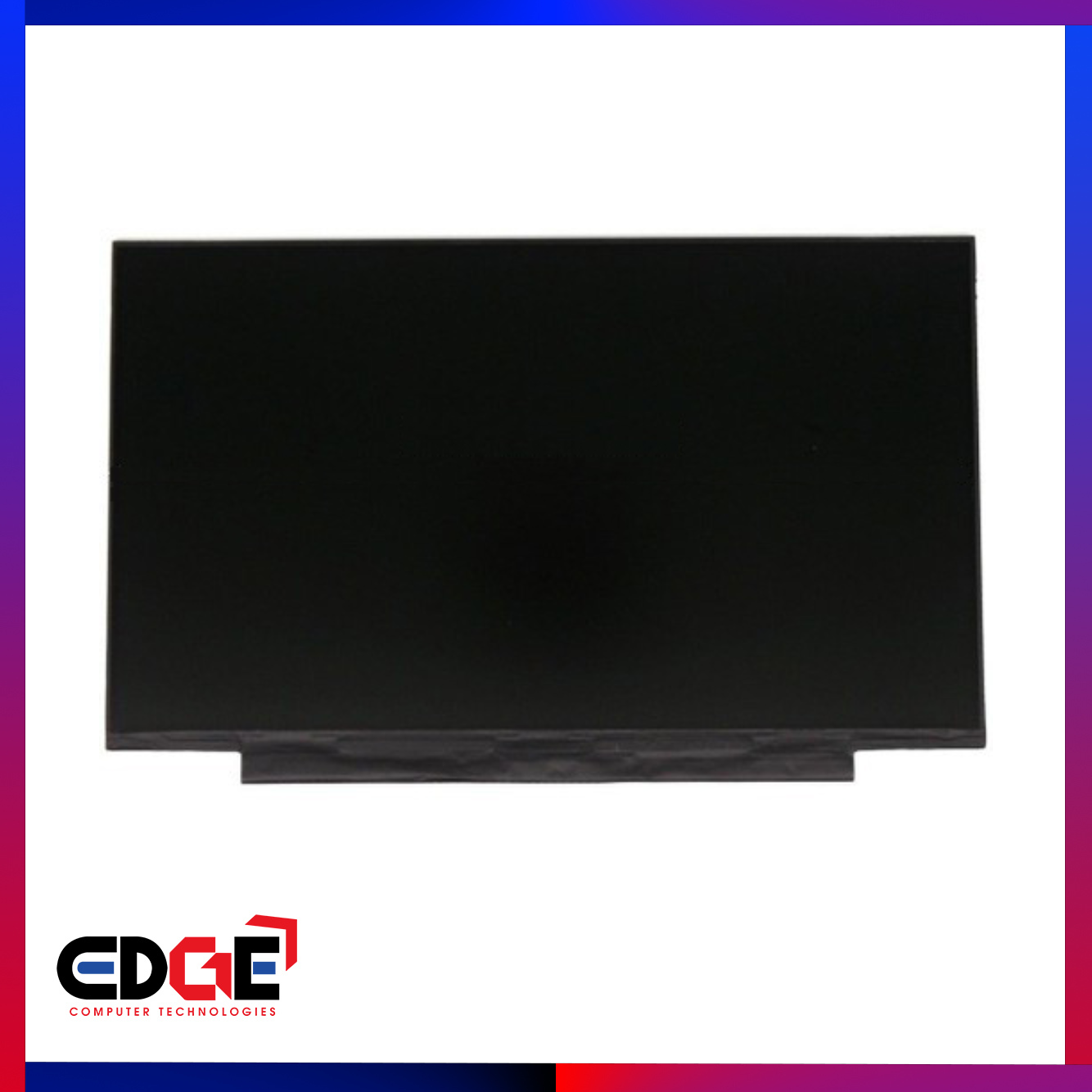

HKC MB140AN01-2 LCD Panel

$40.86 $80.9
Description SPECIFICATIONS Brand HKC Diagonal Size 14.0″ Resolution 1366(RGB)×768, WXGA  112PPI Active Area 309.399(W)×173.952(H) mm Outline (mm) 315.9 × 197.54 × 3 (H×V×D) Luminance 220 cd/m² (Typ.) Viewing Angle 45/45/15/35 (Typ.)(CR≥10) Color Depth 262K   45% NTSC Outline Shape Slim (PCBA Flat, T≤3.2mm) Refresh Rate 60Hz Panel Type a-Si TFT-LCD, LCM Pixel Format RGB Vertical Stripe Treatment Antiglare, Hard coating (3H) Contrast Ratio 500 : 1 (Typ.) (TM) Response 16 (Typ.)(G to G) ms Backlight 16 (Typ.)(G to G) ms Signal Type eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector Voltage Supply 3.3V (Typ.)
