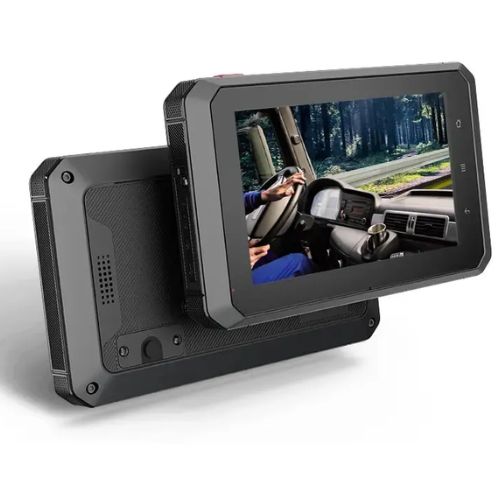

Android 12 Tablet with GNSS, NFC, and RS232 Connectivity
$48.13
$76.05
Description Technical Specifications System CPU Qualcomm Cortex-A53 64-bit Quad-Core Process 2.0 GHz GPU Adreno TM 702 Operating System Android 12 RAM 3GB/4GB Storage 32GB/64GB Functional Module LCD 5 Inch Digital IPS Panel，854 x 480 Interfaces TYPE-C(USB-A and TYPE-C should not be used together) 1 x Micro SD card, Support up to 512G 1 x Micro SIM Card slot Standard 3.5mm earphone connector Camera Rear: 8.0 megapixel camera (optional) Power DC 8-36V（ISO 7637-II） Battery 5F supercapacitor, which only takes 10min to charge, can keep the tablet working for about 10s. Sensors Acceleration, Compass, Ambient Light Sensor Screen Multi-point Capacitive Touch Screen Audio Integrated microphone Integrated speaker 1W Communication Bluetooth 2.1 EDR/3.0 HS/4.2 LE/5.0 LE WLAN 802.11a/b/g/n/ac；2.4GHz&5GHz 2G/3G/4G US Version(North America): LTE FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/ B26/B66/B71 LTE TDD: B41 EU Version(EMEA/Korea/South Africa): LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE TDD: B38/B40/B41 WCDMA: B1/B2/B4/B5/B8 GSM/EDGE：850/900/1800/1900 MHz GNSS NA version:GPS/BeiDou/GLONASS/Galileo/QZSS/SBAS/ NavIC, L1 L5; AGPS, Internal Antenna EM version:GPS/BeiDou/GLONASS/Galileo/QZSS/SBAS, L1; AGPS, Internal Antenna NFC (Optional) ● Read/Write Mode:ISO/IEC 14443A&B up to 848 kbit/s, FeliCa at 212 & 424 kbit/s, MIFARE 1K, 4K, NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693 ● All peer-to-peer modes(included android BEAM) ● Card Emulation Mode (from host): NFC Forum T4T (ISO/IEC 14443A&B) at 106 kbit/s, NFC Forum T3T (FeliCa) Extended Interface (All in one cable) Serial Port RS232 ×1 RS485 ×1 CANBUS ×1 (optional) Ethernet ×1 (optional) GPIO Inputs ×2, Outputs ×2 ACC ×1 Power ×1(8 V to 36V) Environment Operating temperature -10°C to 65°C (14°F to 149°F) Storage temperature -20°C to 70°C (-4°F to 158°F)
