Planet POE-E201 IEEE 802.3at Power over Gigabit Ethernet Extender

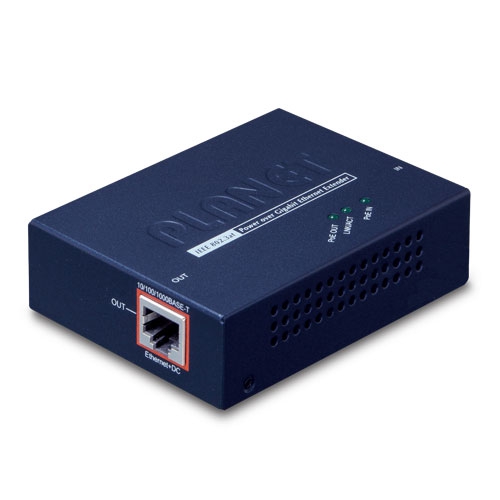

Planet POE-E201 IEEE 802.3at Power over Gigabit Ethernet Extender PLANET POE-E201 is a simple extender which extends both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet transmission distance over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m, 300m, 400m and the maximum 500m. No matter how many PoE supported networking devices such as PoE IP cameras, PoE wireless access points and PoE IP phones are deployed, they are easily installed without the need of having an additional electrical outlet. However, limited by the UTP cabling, only up to 100 meters (328 ft.) of cable is used. Thus, the POE-E201 is designed as the extender to transmit both Gigabit Ethernet data and 802.3af/at PoE power over another distance of 100m. By daisy-chaining multiple POE-E201s, distance can be tripled or quadrupled to meet your requirements. Hardware Specifications LAN IN 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data DC” in auto MDI/MDI-X, auto-negotiation RJ45 connector LAN OUT 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data DC” out auto MDI/MDI-X, auto-negotiation RJ45 connector LED Indicators 1 x PoE IN (Green) 1 x LAN Data (Green) 1 x PoE OUT (Amber) Network Cable 10BASE-T: 4-Pair UTP Cat. 5 up to 100m (328ft) 100BASE-TX: 4-Pair UTP Cat. 5 up to 100m (328ft) 1000BASE-T: 4-Pair UTP Cat. 5e, 6, 6A up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m, 328ft) Power Requirements IEEE 802.3at PoE compliant with voltage within 52V-56V DC IEEE 802.3af PoE compliant with voltage within 48V-51V DC Power Consumption 2.6 watts (system maximum) /PoE Output at maximum 36 watts Dimensions (W x D x H) 94 x 70 x 26 mm Weight 189g Enclosure Metal Installation Wall or DIN-rail mounting Protection ESD (Ethernet): 2KV Surge (EFT for power) : 2KV Switch Specifications Data Rate 10/100/1000Mbps Switch Architecture Store-and-Forward Throughput 10Mbps:14880pps@64Bytes 100Mbps:148810pps@64Bytes 1000Mbps:1488000pps@64Bytes Maximum Frame Size 9K bytes Flow Control Back pressure for half duplex IEEE 802.3x pause frame for full duplex Power over Ethernet PoE Standard “PoE In”Port IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD Per “PoE Out” Port IEEE 802.3at Power over Ethernet Plus end-span PSE Backward compatible with IEEE 802.3af Power over Ethernet standard PoE Power Supply Type End-span/Type A Power Pin Assignment “PoE In” Port 1/2 ( ), 3/6 (-); 4/5 ( ), 7/8 (-) “PoE Out” Port 1/2 ( ), 3/6 (-) Maximum Distance 500 meters with daisy-chain installation of 4 units PoE Power “PoE In” Port 48~56V DC, max. 30.8 watts “PoE Out” Port 44~52V DC, max. 26 watts Standards Conformance Regulatory Compliance FCC Part 15 Class A, CE Standards Compliance IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3x Flow Control Environment Operating Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) Storage Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
