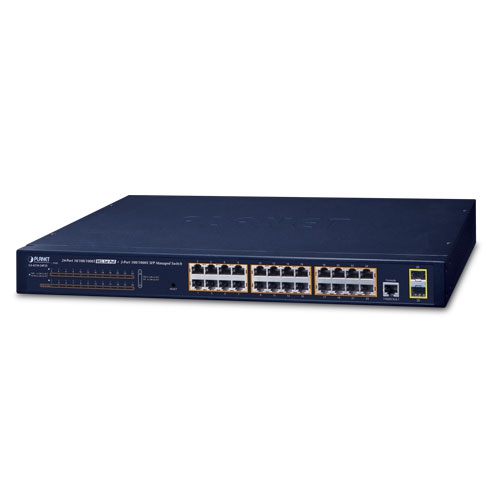

Planet PL-GS-4210-24P2S 24-Port 10/100/1000T 2-Port 100/1000X SFP Managed POE Switch The PLANET PL-GS-4210-24P2S stands as an optimal Gigabit PoE Switch, providing a cost-effective advantage to local area networks and gaining widespread acceptance among SMB office networks. This intelligent switch offers efficient Layer 2 data packet switching and management capabilities, complemented by a user-friendly web interface for seamless operation. Additionally, it ensures stable performance, making it a dependable choice for various network setups. Equipped with 24 10/100/1000BASE-T Gigabit Ethernet ports and 2 100/1000BASE-X SFP interfaces with an internal power system, the GS-4210-24P2S delivers remarkable versatility. Each of its 24 Gigabit Ethernet ports features an integrated 802.3at PoE injector function, empowering all ports to provide Power over Ethernet capability. This rack-mountable switch offers an affordable, secure, and reliable power solution, making it an excellent fit for SMBs seeking to deploy Power over Ethernet networks or enhance data security and network traffic management. Hardware Specifications Hardware Version 2 Copper Ports 24 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X Ports PoE Injector Port 24 802.3af/802.3at PoE Injector Ports SFP/mini-GBIC Slots 2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode Console 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) Reset Button < 5 sec: System reboot > 5 sec: Factory default Thermal Fan 2 Power Requirements 100~240V AC, 50/60Hz, 4A (max.) Power Consumption/Dissipation Max. 330 watts/1122 BTU Dimensions (W x D x H) 445 x 207 x 45 mm (1U height) Weight 2.8kg Enclosure Metal LED System: Power (Green) 10/100/1000T RJ45 Interfaces (Port 1 to Port 24): 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange), PoE (Orange) 100/1000Mbps SFP Interfaces (Port 25 to Port 26): 1000 LNK/ACT (Green), 100 LNK/ACT (Orange) Switching Switch Architecture Store-and-Forward Switch Fabric 52Gbps/non-blocking Switch Throughput@64 bytes 38.6Mpps @64 bytes MAC Address Table 8K entries Shared Data Buffer 4.1 megabits Flow Control IEEE 802.3x pause frame for full duplex Back pressure for half duplex Jumbo Frame 9216 bytes Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE PoE Power Output Per Port 52V DC, 300mA. Max. 15.4 watts (IEEE 802.3af) Per Port 52V DC, 600mA. Max. 30 watts (IEEE 802.3at) PoE Power Budget 300 watts Number of PDs, 7 watts 24 Number of PDs, 15.4 watts 19 Number of PDs, 30 watts 9 PoE Management PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension Layer 2 Functions Port Mirroring TX/RX/both Many-to-1 monitor VLAN 802.1Q tagged VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN Link Aggregation IEEE 802.3ad LACP supports 1 group of 2-port trunk and static trunk supports 1 group of 2-port trunk Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IGMP Snooping IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups MLD Snooping IPv6 MLD (v1/v2) snooping, up to 256 multicast groups QoS 8 mapping IDs to 8 level priority queues Port number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control Ring Supports ERPS, and complies with ITU-T G.8032 Security Functions Access Control List IPv4/IPv6 IP-based ACL/MAC-based ACL Port Security IEEE 802.1X – Port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS user access authentication MAC Security IP-MAC port binding MAC filter Static MAC address Enhanced Security DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard Management Functions Basic Management Interfaces RS232 Console Web browser Telnet SNMP v1, v2c Secure Management Interfaces SSHv2, TLSv1.2, SNMPv3 System Management Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System Event Management Remote/Local Syslog System log SNMP MIBs RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB RFC 3621 Power Ethernet MIB Standards Conformance Regulatory Compliance FCC Part 15 Class A, CE Standards Compliance IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 ITU G.8032 ERPS Ring Environment Operating Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) Storage Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
