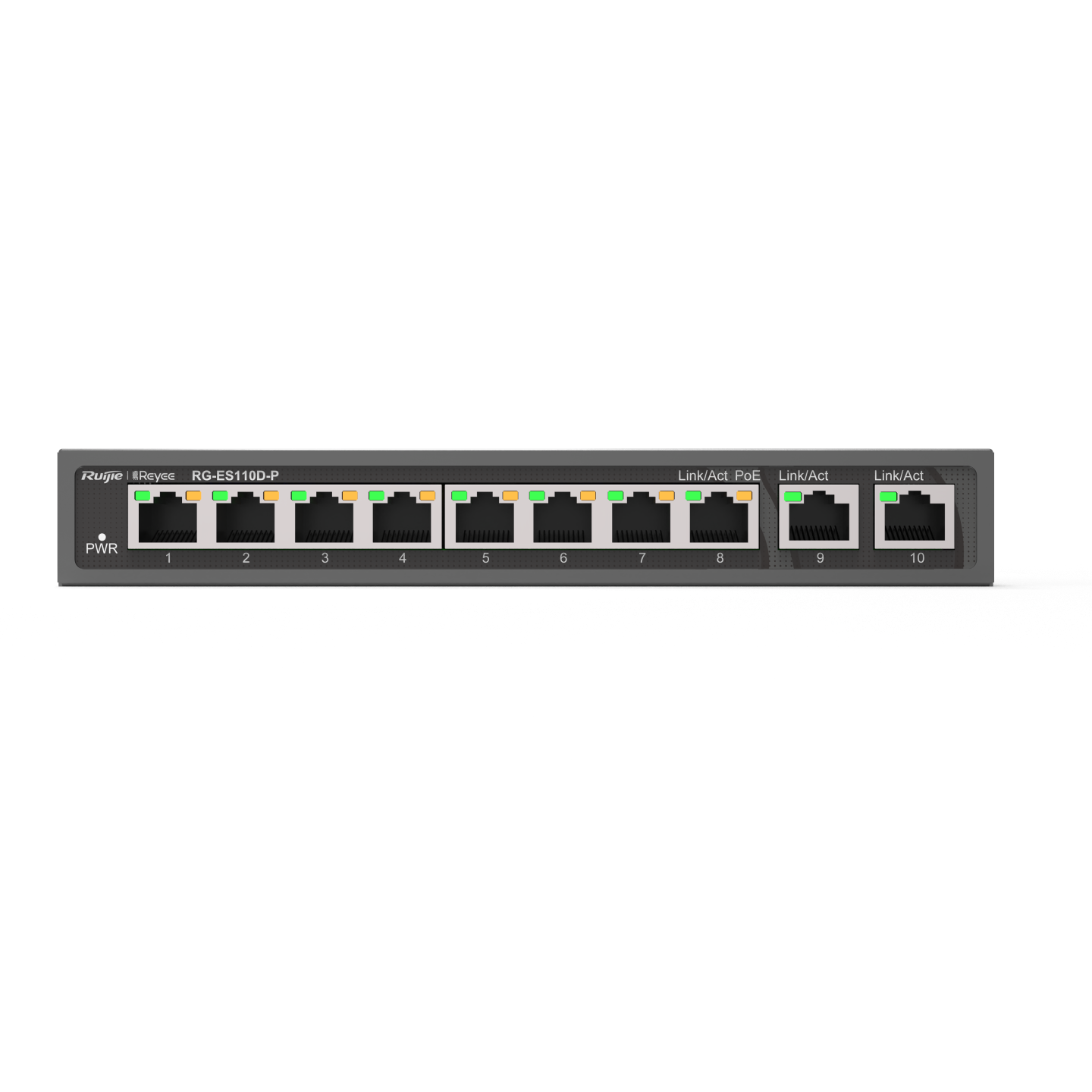

Ruijie Reyee RG-ES110D-P Poe switch Overview The Ruijie Reyee RG-ES110D-P is an unmanaged Poe switch designed to expand wired network connectivity with minimal setup. It provides eight 10/100 Mbps Ethernet ports that support Power over Ethernet (PoE/PoE ), allowing you to power devices such as IP cameras, access points, or VoIP phones directly through the network cable without needing separate power adapters. In addition, it includes two Gigabit uplink ports for high-speed connection to routers, servers, or backbone switches, ensuring efficient data paths within your network. This plug-and-play design requires no configuration, making it convenient for users of all experience levels. Despite its simplicity as an unmanaged switch, the RG-ES110D-P doesn’t skimp on reliability or performance. It features a large buffer and hardware-based flow control to promote smooth data transmission under load, as well as intelligent PoE management that can deliver up to 30 W per port within a total 110 W PoE budget. The device operates quietly thanks to its fanless design and incorporates energy-efficient technologies that reduce power consumption. It also supports visibility on the Ruijie Cloud App for basic monitoring even though it doesn’t offer full managed features like VLANs or routing. Built with everyday environments in mind, this switch suits scenarios such as small business networks, surveillance setups, and home offices where straightforward connectivity expansion is needed without the complexity of managed switches. Its robust hardware ensures high network reliability and consistent performance, backed by a typical 3-year warranty. The low profile and desktop form factor make it easy to integrate into existing setups without taking much space. Feature Specification Model RG-ES110D-P Switch Type Unmanaged desktop switch Ports 8 × 10/100BASE-T (PoE/PoE ) 2 × Gigabit uplink ports PoE/PoE Support Yes – 8 PoE/PoE ports Total PoE Budget 110 W Forwarding Rate ≈ 4.17 Mpps Switching Capacity 5.6 Gbps MAC Address Table ~2000 entries (typical) Surge Protection ~6 kV port surge protection Fan Fanless (quiet operation) Energy Efficiency Yes (802.3az / green features) Cloud Visibility Yes – visible on Ruijie Cloud App Form Factor Desktop Warranty 3 years Dimensions (approx.) ~190 × 100 × 28 mm Weight (with package) ~1.3 kg Typical Operating Temp. 0 °C to 45 °C Mounting Desktop use (no rack ears)
