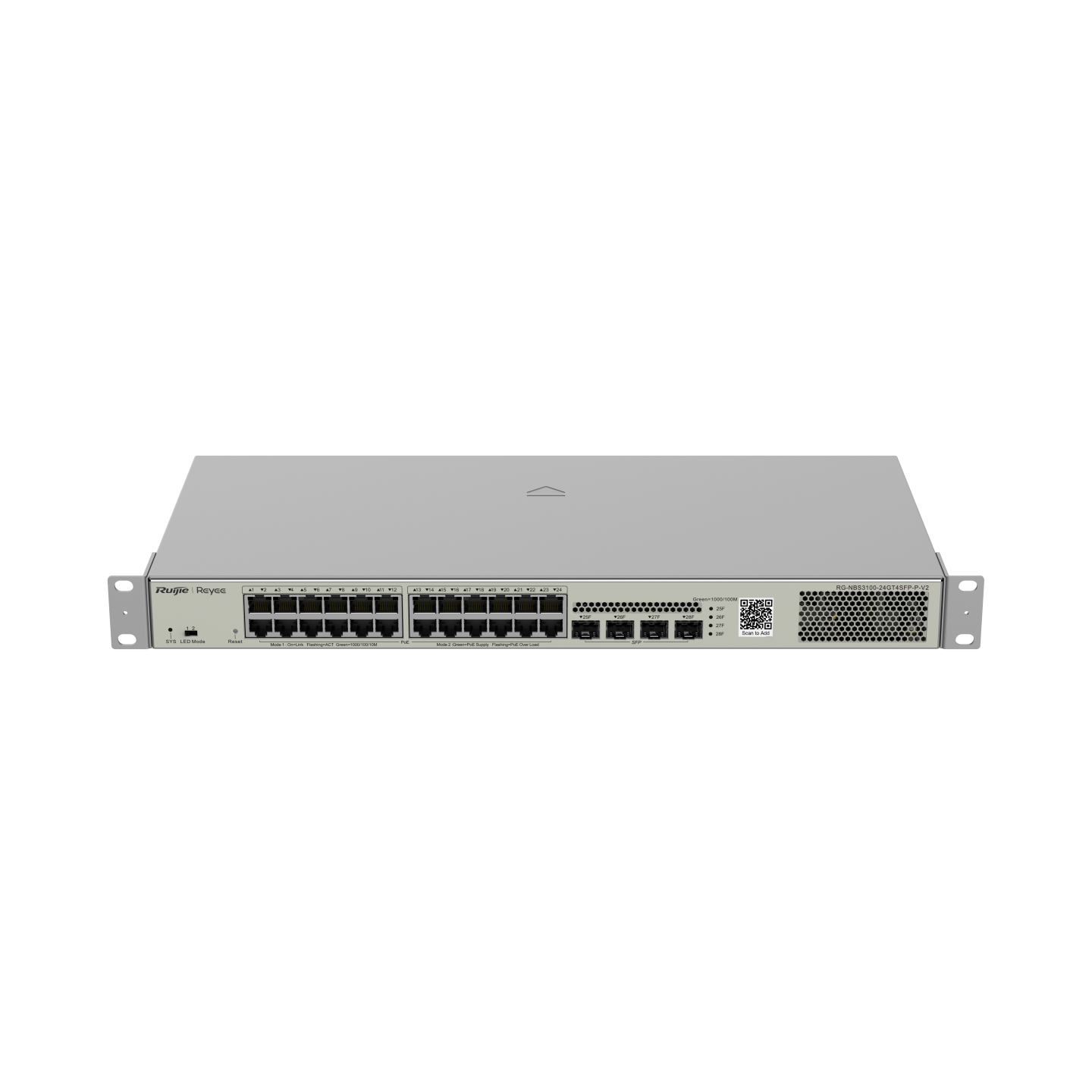

Ruijie Reyee NBS3100-24GT4SFP-P Overview The Ruijie Reyee NBS3100-24GT4SFP-P is a 28-port Gigabit Layer-2 cloud-managed PoE switch designed for SMB, enterprise branch networks, and surveillance deployments. It provides 24 Gigabit PoE Ethernet ports and 4 Gigabit SFP uplink ports, enabling reliable wired connectivity for access points, IP cameras, VoIP phones, and other PoE devices. Managed through Ruijie Cloud, the switch supports zero-touch deployment, remote monitoring, and centralized configuration, simplifying network deployment and maintenance. With a 370 W PoE budget, advanced Layer-2 features, and enterprise-grade reliability, it is suitable for campus access networks, retail environments, and office infrastructure. Category Specification Model NBS3100-24GT4SFP-P Switch Type Layer 2 Managed Switch Total Ports 28 ports Ethernet Ports 24 × 10/100/1000BASE-T Uplink Ports 4 × 1GE SFP PoE Ports 24 PoE / PoE Maximum PoE Budget 370 W Switching Capacity 56 Gbps Forwarding Rate 41.67 Mpps Packet Buffer 4.1 Mbit MAC Address Table 8,000 entries Maximum VLANs 4094 Jumbo Frame Up to 9216 bytes Layer Features VLAN, LAG, STP/RSTP, IGMP Snooping Security Features Port isolation, storm control Management Ruijie Cloud / Web GUI Operating Temperature 0°C to 50°C MTBF ~400,000 hours Warranty 5 years
