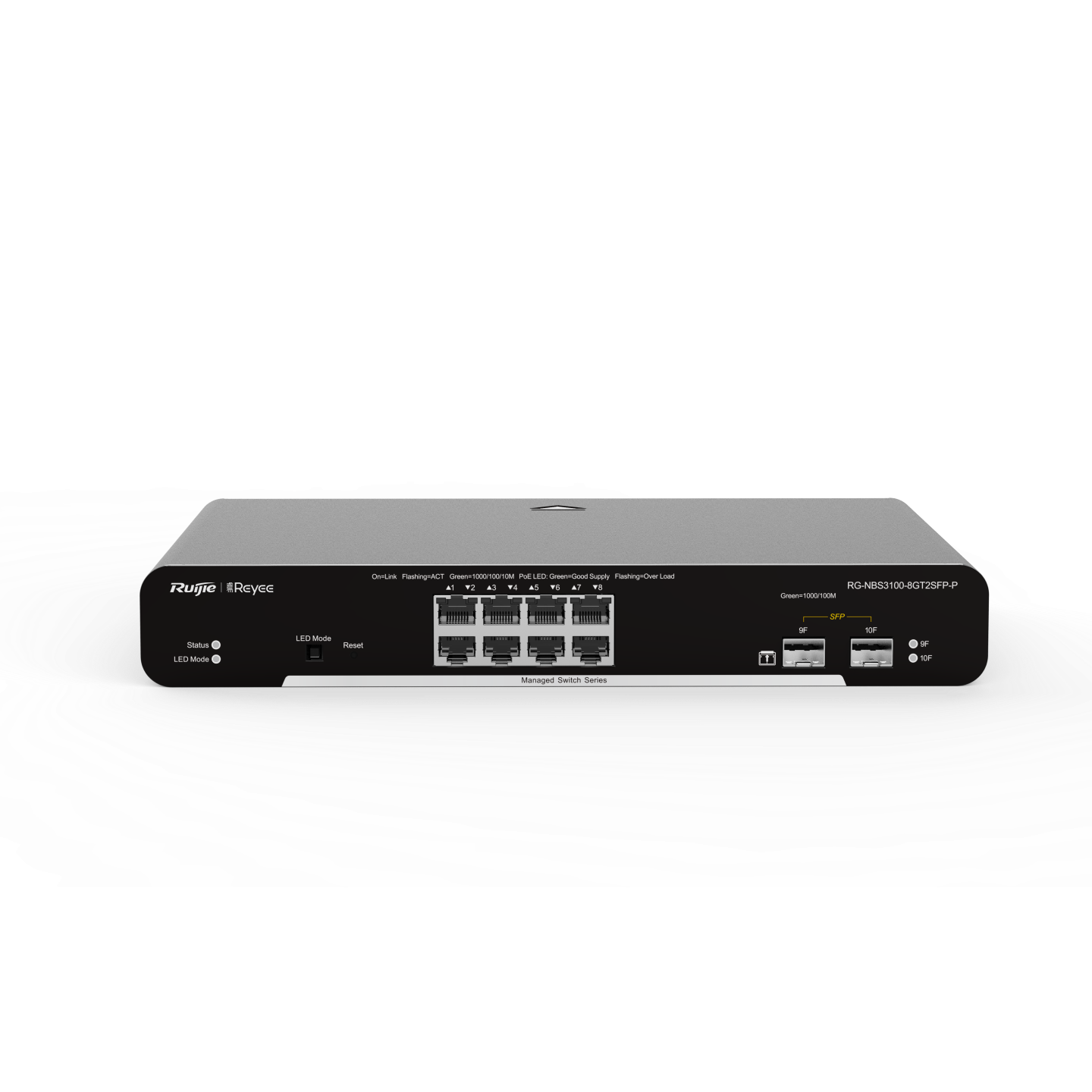

Ruijie Reyee NBS3100-8GT2SFP-P The Ruijie Reyee NBS3100-8GT2SFP-P is a compact 10-port Layer-2 cloud-managed Gigabit PoE switch designed for small business networks, branch offices, retail environments, and surveillance systems. It features 8 Gigabit PoE Ethernet ports and 2 Gigabit SFP uplink ports, enabling efficient connectivity for wireless access points, IP cameras, VoIP phones, and other PoE-powered devices. The switch supports Ruijie Cloud management, allowing centralized monitoring, configuration, and zero-touch provisioning through the cloud or mobile app. With a 125 W PoE power budget, enterprise-grade Layer-2 capabilities, and fan-less compact design, it is ideal for edge deployments where reliable connectivity and simplified network management are required. Category Specification Model RG-NBS3100-8GT2SFP-P Switch Type Layer 2 Managed Switch Total Ports 10 ports Ethernet Ports 8 × 10/100/1000BASE-T Uplink Ports 2 × 1GE SFP PoE Ports 8 PoE / PoE Maximum PoE Budget 125 W Switching Capacity 20 Gbps Forwarding Rate 14.88 Mpps Packet Buffer 4.1 Mbit MAC Address Table 8,000 entries Maximum VLANs 4094 Jumbo Frame Up to 9216 bytes Layer-2 Features VLAN, LAG, STP/RSTP, IGMP Snooping Security Port isolation, storm control Cloud Management Ruijie Cloud / Reyee App Operating Temperature 0°C – 50°C
