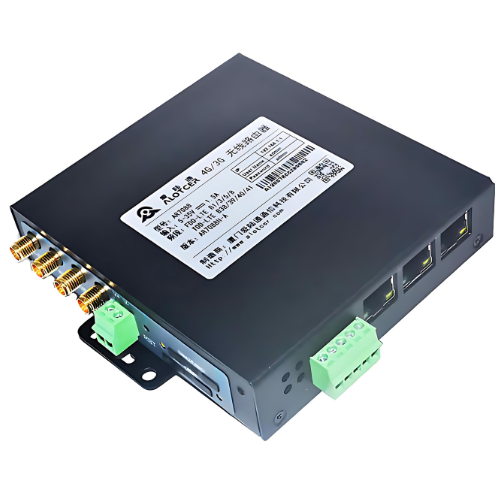

Description Overview GAOTek’s IoT Cellular Industrial Router with LTE, Wi-Fi, and Dual RS Ports is an advanced terminal device leveraging 2G or 3G or 4G, Wi-Fi, and VPN technologies. Equipped with a high-powered industrial 32-bit CPU and an embedded real-time operating system, it supports RS232, RS485, Ethernet, and Wi-Fi interfaces for seamless connectivity. This router enables transparent communication between cellular networks and serial, Ethernet, or Wi-Fi devices with minimal configuration. Ideal for M2M applications, it is widely used in intelligent transportation, smart grid, postal services, industrial automation, telemetry, finance, POS, water supply, environmental protection, and weather monitoring, offering reliable and efficient IoT connectivity solutions. Technical Specifications CPU Industrial 32 bits CPU FLASH 16 MB (Extendable to 64 MB) SDRAM 128 MB WAN/LAN 1 10/100 Mbps WAN (RJ45, can configurable as LAN) port, auto MDI/MDIX, 1.5 KV magnetic isolation protection Serial 1 RS232 and 1 RS485, 15 KV ESD protection Serial port: 5 PIN industrial terminal, 0.13 in (3.5 mm) pitch. Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5 (optional), 2 Parity: none, even, odd, space, mark Baud rate: 230400 to 110 bps Large serial port data cache: 10 MB LAN 2 10/100 Mbps Ethernet ports (RJ45), auto MDI/MDIX, 1.5 KV magnetic isolation protection Antenna Cellular/GPS: Standard SMA female interface, 50 ohm WIFI: Standard SMA male interface, 50 ohm SIM/UIM Standard 3 V/1.8 V user card interface, 15 KV ESD protection Power 2 PIN industrial terminal, 0.15 in (3.81 mm) pitch, reverse – voltage and over voltage protection Reset Press this key for 8 seconds to restore the Router to its original factory default settings Indicator “PWR”, ”SIG”, ”NET”, ”APP”, ”Link”(RJ45) Wireless Network GSM/GPRS/EDGE: 850/900/1800/1900 MHz CDMA: 800/1900 MHz WCDMA/HSUPA/HSPA : 850/900/1900/2100 MHz CDMA2000 1x/ EVDO Rev. A:800/1900 MHz TD-S CDMA: 1880-1920/2010-2025 MHz (A/F) TDD-LTE: Band 38/39/40/41 & Band 61/62 (Private Network) FDD-LTE: Band 1/2/3/4/5/7/8/12/13/17/18/19/20/21/25 /26/28/66 PPP Protocol Support PPP Protocol PPP Heartbeat Maintaining links with the cellular network to prevent forced sleep, to ensure the stability of dial-up links. Network Authentication Support CHAP/PAP Authentication TCP Heartbeat Monitor the server connection Standard IEEE802.11b/g/n Bandwidth IEEE802.11b/g: 54 Mbps (max) IEEE802.11n: 150 Mbps (max) Security WEP, WPA, WPA2, etc. WPS (optional) Power range DC 35 V to 5 V, Recommended 12 V DC/1.5 A Communication Current < 500 MA (at 12 V DC) Standby Current < 250 MA (at 12 V DC) Dimensions 4.21 in x 3.85 in x 0.94 in (107 mm x 98 mm x 24 mm) Weight 0.77 lbs (350 g) Installation Mount Kit or DIN Rail 1.37 in (35 mm) (optional) Operating Temperature -31 °F to 167 °F (-35 °C to 75 °C) Storage Temperature -40 °F to 185 °F (-40 °C to 85 °C) Operating Humidity 95% (unfreezing)
