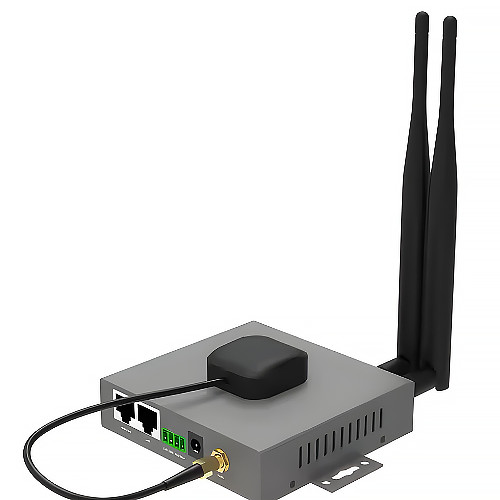

Description Overview GAOTek Industrial Router with GPS is the internet of thing mobile broadband router and a machine to machine(M2M) industrial cellular router.High data speed via 4G network, 3G/2G backward compatible.It is an ideal wireless data transfer device for applications transferring large data load because of ultimately fast transfer speed in 4G network reaching up to 150Mbps download and up to 50Mbps upload. Technical Specifications Wireless Modules Industrial cellular module Broadband Max 150 Mbps (DL) or 50 Mbps (UL) Transmit Power < 23 dBm Receiving Sensitivity < -108 dBm GPS Frequency 1575.42 MHz Sensitivity Capture -158 dBm, track -162 dBm TTFF Cold Start 28 seconds, Warm start 18 seconds, Hot Start 1 second Standard Support IEEE802.11b/g/n/ac standard Theoretical BroadBand 54 Mbps (b/g),150 Mbps (n) Security Encryption It supports a variety of encryption WEP, WPA, WPA2, etc. Transmit Power About 15 dBm (11n),16 to 17 dBm (11g),18 to 20 dBm (11b) Receiving Sensitivity <- 72 dBm at 54 Mbps WAN 10 M or 100 M Ethernet port (RJ45 socket), adaptive MDI/MDIX, can be switched to LAN LAN 10 M or 100 M Ethernet port (RJ45 socket), adaptive MDI/MDIX Serial RS232 or Rs485 port, baud rate 115200 to 2400 Bps Indicator Light With “PWR”, “WAN”, “LAN”, “NET” indicator lights Antenna 3 x standard SMA female antenna interfaces, namely cellular, GPS and WiFi SIM/USIM Standard 1.8 V or 3 V card interface Power Standard 3-PIN power jack, reverse-voltage and over-voltage protection Reset Restore the router to its original factory default settings Standard Power DC 12 V / 1 A Power Range DC 7.5 V to 32 V Consumption About 3 W at 12 V DC Shell Metal housing CPU Industrial 32 bits CPU, Qualcomm QCA9531, 650 MHz FLASH/RAM 16 MB or 128 MB Relative Humidity < 95 % non-condensing Work Temperature -22 °F to 167 °F (-30 °C to 75 °C) Storage Temperature -40 °F to 185 °F (-40 °C to 85 °C) Size 3.93 in x 3.74 in x 0.98 in (10 cm x 9.5 cm x 2.5 cm) Weight 9.17 oz (260 g) Packaging Weight 28.21 Ib (800 g)
