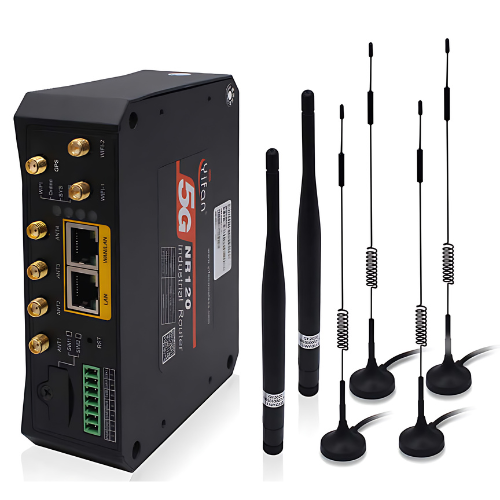

Description Overview GAOTek’s Industrial 5G or 4G LTE Cellular IoT Router Dual-SIM with Gigabit Ports is a cutting-edge wireless communication router designed for the Internet of Things (IoT). Powered by a high-performance industrial-grade 32-bit communication processor and wireless module, it ensures reliable data transmission and routing. Featuring 1xRS232, 1xRS485, 1xLAN, and 1xWAN or LAN ports, it supports transparent data communication. With failover modem support, GRE, IPSEC, and cloud platform management, this router is ideal for smart grid, intelligent transportation, smart manufacturing, smart home, and other IoT applications, providing seamless connectivity and robust performance in diverse industrial environments. Technical Specifications Module Industrial grade wireless module Standard and Band 5G NR: n1, n3, n5, n7, n8, n20, n28, n38, n41, n77, n78, n79 LTE: B1, B2, B3, B5, B7, B8, B20, B28, B34, B38, B39, B40, B41, B42, B43 WCDMA: B1, B2, B5, B8 Optional: 5G NR: n2, n5, n7, n12, n25, n41, n66, n71, n78 LTE: B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B66, B71, B41, B42, B48 WCDMA: B1, B2, B5, B8 Optional: 5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE TDD: B34/B38/B39/B40/B41/B42/B43/B48 Bandwidth 5G NR：DL 3.4 Gbps， UL 900 Mbps LTE Cat20：DL 2.0 Gbps，UL 150 Mbps HSPA ：DL 42 Mbps，UL 5.76 Mbps TX power < 23 dBm RX sensitivity <- 97 dBm Frequency Support IEEE 802.11b/g/n, 2.4G, Support IEEE 802.11ac, 5.8G Bandwidth IEEE 802.11b/g: Maximum speed rate up to 54 Mbps IEEE 802.11n: Maximum speed rate up to 300 Mbps IEEE 802.11ac: Maximum speed rate up to 866 Mbps Security Support WEP, WPA, WPA2 encrypt methods, optional WPS function Transmit Power 26 dBm (11 b), 21 dBm (11ac/MCS7/HT40), 20 dBm (11ac/MCS9/HT80) RX sensitivity <- 72 dBm at 54 Mbps WAN/LAN Interface 1 x Gigabit RJ45 ethernet port, adaptive MDI/MDIX, built-in 15 KV ESD LAN Interface 1 x Gigabit RJ45 ethernet port, adaptive MDI/MDIX, built-in 15 KV ESD Serial 1 x RS232/RS485 serial interface with built-in 15 KV ESD Data bits: 5, 6, 7, 8 bits Stop bits: 1, 1.5 (optional), 2 bits Error detection: none, even parity, odd parity, SPACE (optional) and MARK (optional) Serial Port Rate: 115200 to 2400 bits/s LED Indicators “WIFI”, “Online”, “PWR”, “SYS” Antenna Interface Cellular: 4 * Standard SMA female antenna interface, characteristic impedance: 50 Ω WIFI: 2 * Standard SMA male antenna interface, characteristic impedance: 50 Ω SIM/UIM Slot Standard drawer type user card interface, support 1.8 V/3 V SIM/UIM card, built-in 15 KV ESD, support dual SIM cards
