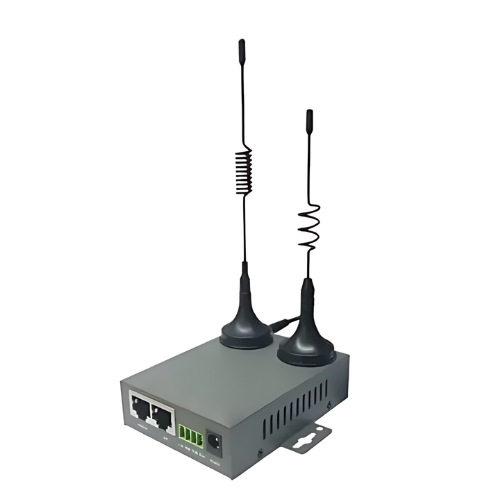

Industrial 4G LTE Wireless Router with VPN, Wi-Fi and SIM Slot – GAOTek

Description Overview GAOTek’s Industrial 4G LTE Wireless Router with VPN, Wi-Fi, and SIM Slot is a cost-effective and versatile solution for M2M, IoT, and SCADA applications. This powerful router features two 100Mbps RJ45 network ports (one configurable as WAN or LAN and one LAN port), a serial port (default RS232, optional RS485), and a convenient drawer SIM or UIM card slot. Designed for seamless connectivity, it enables simultaneous operation of serial, Ethernet, and Wi-Fi connections, ensuring efficient pass-through data transmission and control functions. Ideal for industrial environments, this router provides reliable performance and robust security for diverse machine-to-machine and IoT communication needs.    Technical Specifications WiFi Chipset: QCA9531 Standard: IEEE802.11b/g/n Frequency 2.4 GHz, Speed up to 150 Mbps Cellular Module: EC25 or SLM750 Frequency Band: Global bands, customized. FDD-LTE, TDD-LTE, HSPA, UMTS, WCDMA, EVDO, GSM, GPRS, etc LAN 1 x Ethernet interface (RJ45), Auto MDI or MDIX, built-in 1.5 KV electromagnetic isolation protection WAN 1 x Ethernet interface, Auto MDI or MDIX, built-in 1.5 KV electromagnetic isolation protection, can be converted to LAN Serial Port 1 x RS232 (Default) or RS485 (Optional) Antenna 2 standard SMA antenna interface (WIFI and 3G or 4G), 50 Ω SMA, GPS (optional) SIM/UIM Standard drawer type user card interface, Support 1.8 V or 3 V SIM or UIM card built-in 15 KV ESD protection Power Standard 0.14 in (3.5 mm) terminal block interface, with built-in phase-reversal and over-voltage protection CPU Industrial-grade 32-bit MIPS processor, 650 Mhz Memory 128 MB Flash, 1024 DDR3 RAM Standard DC 12 V / 1 A Range 32 V to 7.5 V Consumption 2.3 W Operating Temperature -22 °F to 167 °F (-30 °C to 75 °C) Storage Temperature -40 °F to 185 °F (-40 °C to 85 °C) Relative Humidity 95% to 0% (No condensation) Weight 7.41 oz (210 g) Size 3.77 in x 2.78 in x 0.98 in (95.5 mm x 70.5 mm x 25 mm)
