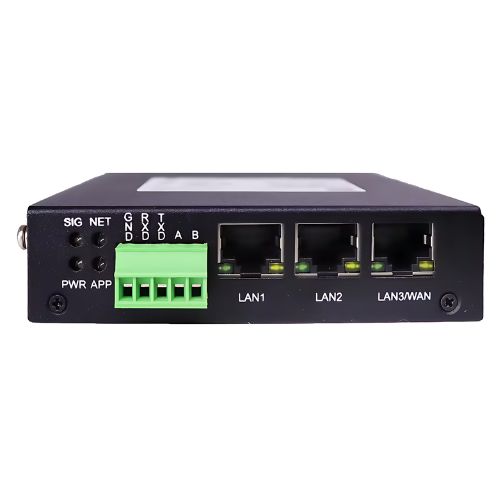

Industrial 4G LTE Cellular Router with Dual Ethernet and Serial Ports – GAOTek
$36.74
$48.13
Description Technical Specifications FLASH 16 MB (Extendable to 64MB) SDRAM 128 MB Serial 1 RS232 and 1 RS485, 15KV ESD protection Serial port 5 PIN industrial terminal, 3.5 mm pitch Data bits 5, 6 ,7, 8 Stop bits 1, 1.5(optional), 2Parity none, even, odd, space, mark Baud rate 110~230400 bps Large serial port data cache 10MB WAN/LAN 1 10 or 100Mbps WAN(RJ45,can configurable as LAN) port, auto MDI or MDIX, 1.5KV magnetic isolation protection LAN 2 10 or 100Mbps Ethernet ports(RJ45), auto MDI or MDIX, 1.5 KV magnetic isolation protection Antenna Cellular or GPS Standard SMA female interface, 50 ohm WIFI Standard SMA male interface, 50 ohm SIM/UIM Standard 3V or 1.8 V user card interface, 15 KV ESD protection Power 2 PIN industrial terminal, 3.81 mm pitch, reverse voltage and over voltage protection Reset Press this key for 8 seconds to restore the Router to its original factory default settings Indicator PWR、SIG、NET、APP 、Link (RJ45) Wireless Network GSM or GPRS or EDGE 850 or 900 or 1800 or 1900MHz CDMA 800 or 1900MHz WCDMA or HSUPA or HSPA 850 or 900 or 1900 or 2100MHz CDMA2000 1x or EVDO Rev. A 800 or 1900MHz TD SCDMA 1880 to 1920 or 2010 to 2025MHz(A or F) TDD LTE Band 38 or 39 40 41& Band 61 62 (Private Network) FDD LTE Band1 or 2 or 3 or 4 or 5 or 7 or 8 or 12 or 13 or 17 or 18 or 1 9 or 20 or 21 or 25 or 26 or 28 or 66 5G Sub 6 n2 or n5 or n7 or n12 or n14 or n38 or n41 or n66 or n71 or n785G UL MIMO n77 or 78 or 79 or 41 PPP Protocol Support PPP Protocol PPP Heartbeat Maintaining links with the cellular network to prevent forced sleep, to ensure the stability of dial up link. Network Authentication Support CHAP or PAP Authentication TCP Heartbeat Monitor the server connection Standard IEEE802.11b or g or n Bandwidth IEEE802.11b or g 54Mbps (max) IEEE802.11n 150Mbps (max) Security WEP, WPA, WPA2, etc. WPS (optional) Power range DC 5 to 35V, Recommended 12VDC or 1.5A Communication Current 500 mA ( at 12VDC) tandby Current < 250 mA（at 12VDC） Installation Mount Kit or DIN Rail 35mm (optional) Dimensions 4.21 in x 3.86 in x 0.94 inb(107 mm x 98 mm x 24 mm) Weight 12.35 oz (350g) Operating Temperature -31 to 167℉ (-35 to 75ºC) Storage Temperature -40 to 185℉ (-40 to 85ºC)
