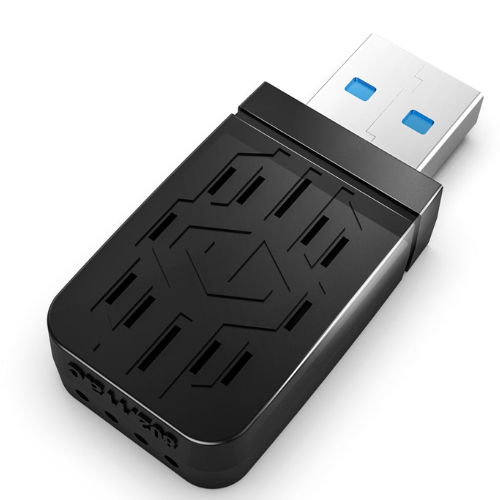

Description Overview GAOTek – 5G WiFi Dongle Antena with USB is 802.11B/G/N/AC Dual Band USB Adapter is an ideal powerful device for connecting desktop computer into wifi network. It features a super thin size and is very convenient to use (plug and play)! Works over 2.4G and 5G Features Support advanced 2*2 tech with up to 867Mbps up and down stream data rate Complied with 2.4GHz & 5GHz IEEE802.11a/b/ac Draft2.0 Standards 20Mhz and 40MHz,80MHZ bandwidth transmission Wireless security-64/128-bit WEP, WPA, WPA2 QoS Enhancement WMM DSSS with DBPSK and DQSK, CCK modulation with long and short preamble OFDM with BPSK, QPSK,16QAM,256QAM Modulation WPS hardware button Technical Specifications Category Details Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11ac, IEEE 802.11a Transmit Speed 802.11b: 1 or 2 or 5.5 or 11 Mbps 802.11g: 6 or 9 or 12 or 18 or 24 or 36 or 48 or 54 Mbps 802.11n: up to 300 Mbps 802.11ac: up to 867 Mbps Frequency Range 2.412 to 2.4835 GHz 5.180 to 5.320 GHz 5.500 to 5.700 GHz 5.745 to 5.825 GHz Work Channel 1 to 14 (2.4 GHz) 36 to 165 (5 GHz) Work Power 18 dBm (Typical) Sensitivity 11n: -68 dBm at 130M, -68 dBm at 108M 11g: -69 dBm at 54M 11b: -85 dBm at 11M 11ac: -59 dBm at 867M Wireless Security WPA/WPA2/WPA-WPA2/802.1x, 64 or 128-bit WEP, WPS (PIN, PBC) Supported Operating Systems Windows 2000/XP/Vista/Win7/Win8/Win8.1/Win10/Win11/Mac OS/Linux Host Interface USB 3.0 LED Indicator BLUE (Link/Act) Antenna Type Internal Omni-directional Antenna Environment Operating Temperature: 0℃ to 45℃ Storage Temperature: -20℃ to 75℃ Operating Humidity: 10% to 90% RH (Non Condensing) Storage Humidity: 5% to 95% RH (Non Condensing)
