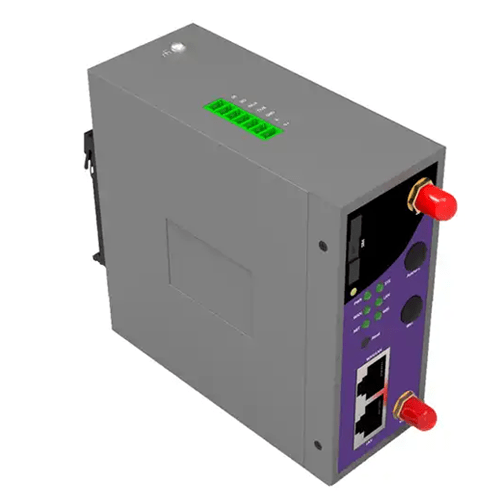

Description Overview 4G Wi-Fi Cellular Module with VPN, Dual Watchdogs & Cloud System is a cost-effective and powerful industrial router, which is widely used in M2M (Machine to Machine), IoT (Internet of things) and SCADA area. It provides 2 x 100 Mbps RJ 45 network ports (one of which can be multiplexed with WAN, LAN, one LAN ports), a series port (RS 232 default, can change to RS 485), and a drawer SIM, UIM card slot. It can have a serial port, Ethernet port and WIFI connected and working at the same time, providing pass-through data transmission and control functions. Features Stable work for 7 x 24 hours in harsh environment Hardware and software dual Watchdog anti-crash design Full band coverage, compatible with global major operators’ network Secure solutions, data transmission meet financial requirement Support multiple VPN protocols ZLWL Remote Management System (Cloud Platform) Support devices configuration Upgrade and maintenance remotely Greatly improve the efficiency of management Technical Specifications Wi-Fi Chipset QCA 9531 Standard IEEE 802.11 b, g, n, Frequency 2.4 GHz, Speed up to 150 Mbps Cellular Module EC 25, SLM 750 Frequency Band Global bands, customized FDD-LTE, TDD-LTE, HSPA, UMTS, WCDMA, EVDO, GSM, GPRS, etc. LAN 1 x Ethernet interface (RJ 45), Auto MDI, MDIX, built-in 1.5 KV electromagnetic isolation protection WAN 1 x Ethernet interface, Auto MDI, MDIX, built-in 1.5 KV electromagnetic isolation protection, can be converted to LAN Serial Port 1 x RS 232 (Default), RS 485 (Optional) Indicators WAN, LAN, WLAN, NET four indicating lamps, the NET is a color indicator (red network signal is poor, Orange network signal is general, green network signal is good) Antenna 2 standard SMA antenna interface (WIFI and 3G, 4G), 50 Ω SMA, GPS (optional) SIM, UIM Standard drawer type user card interface, Support 1.8 V, 3 V SIM, UIM card built-in 15 KV ESD protection Power Standard 0.14 in (3.5 mm) terminal block interface, with built-in phase-reversal and over-voltage protection Reset Button Restore the router’s parameter configuration to factory values CPU Industrial-grade 32-bit MIPS processor, 650 Mhz Memory 16 MB Flash, 128 MB DDR 3 RAM Standard DC 12 V, 1 A Range 7.5 V to 32 V Consumption 2.3 W Housing Metal Mounting Desktop or wall mounting & Din-rail Mounting Relative Humidity 0% to 95% (No condensation) Operating Temperature -22 ℉ to 158 ℉ (-30 ℃ to 70 ℃) Storage Temperature -40 ℉ to 185 ℉ (-40 ℃ to 85 ℃) Dimensions 4.02 in x 3.94 in x 1.61 in (102 mm × 100 mm × 41 mm) Weight About 0.73 lb (332 g)
