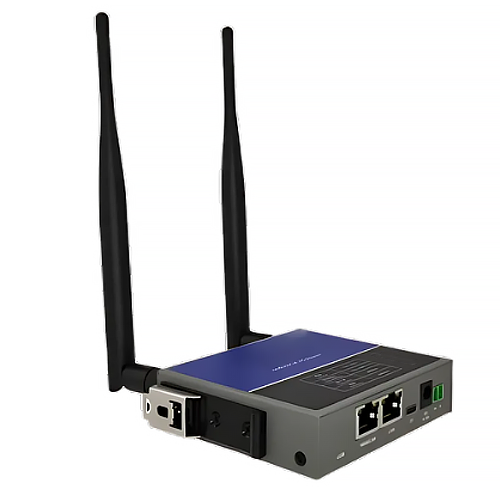

Description Features High performance industrial grade 32-bit MIPS processor High performance industrial-grade wireless communication module Hardware and Software WDT design Low power consumption and low heat generation Support Desktop or Wall mount Din-rail installation Remote online monitoring power input rang 7.5V to 32V DC Parameter configuration Equipment upgrades or reboot Use plate metal CRS shell, heat dissipation is good Support APN and VPDN private network access Technical Specifications Product Name GAOTek Industrial 4G LTE IoT Router with Cellular and Serial Support Wi-Fi Chipset MTK7628 Standard IEEE802.11b or g or n, Frequency 2.4GHz, Speed up to 150Mbps Cellular Module EC25 or SLM750 Frequency Band Global bands, customized. FDD-LTE, TDD-LTE, HSPA, UMTS, WCDMA, EVDO, GSM, GPRS, etc LAN 1xEthernet interface（RJ45）, Auto MDI or MDIX, built-in 1.5KV electromagnetic isolation protection WAN 1xEthernet interface, Auto MDI or MDIX, built-in 1.5KV electromagnetic isolation protection, can be converted to LAN Serial Port 1 x RS232 1 x RS485 Indicators “WAN”, ” LAN”, “WLAN”, and “NET” are four indicating lamps, and the “NET” is a color indicator (red network signal is poor Orange network signal is general green network signal is good) Antenna 2 standard SMA antenna interface (WIFI and 3G or 4G), 50ΩSMA SIM Or UIM Standard drawer type user card interface, Support 1.8V or 3V SIM or UIM card built-in 15KV ESD protection Power Standard 3.5mm terminal block interface, 2 PIN terminal block interface,5V Type-C port. with built-in phase reversal and over-voltage protection Reset Button Restore the router’s parameter configuration to factory values CPU Industrial grade 32-bit MIPS processor,580Mhz Memory 16 MB Flash,64MB RAM DDR2 Standard DC 12V or 1A Range 7.5V or 32V °F Consumption 2.3W Housing Metal Mounting Desktop or wall mounting or Din-rail mounting Relative Humidity 0 % to 95 % (No condensation) Operating Temperature -22 °F to 158 °F (-30 ℃ to 75 ℃) Storage Temperature -40 °F to 176 °F (-40 ℃ to 85 ℃) Dimensions 3.82 in x 3.54 in x 0.98 in (9.7 cm × 9 cm × 2.5 cm) Weight About 7.05 oz (200 g)
