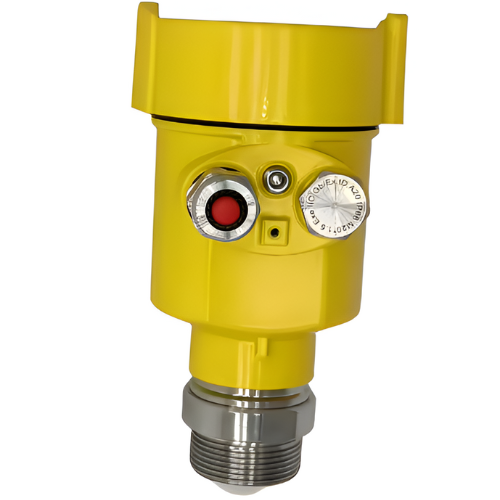

Description Features 80GHz FMCW technology False echo suppression option Narrow beam, small blind zone and accurate measurement Unaffected by temperature fluctuations Resistant to dirt and buildup Measurement under vacuum and high pressure Small size, easy to use, less maintenance Technical Specifications Grade Industrial Measuring Range 0 ft to 98.4 ft (0 m to 30 m) Frequency Range 76 GHz to 81 GHz Bandwidth Instant 4 GHz Accuracy ±0.039 in (±1 mm) Signal Output 4-20 mA/HART Digital Output RS485/MODBUS Connection Bluetooth/NB-IoT/4G Operating Voltage DC 24±6V (2-wire) AC 220V (4-wire) Antenna Aluminum Alloy/Stainless Steel PTFE horn lens antenna Material Aluminum Alloy/Stainless Steel PTFE Process Connection Thread G1½; Flange DN50 Medium Temperature -40 to 248 °F (-40°C to 120°C) Process Pressure (-14.5 psi to 14.5 psi) (-0.1 MPa to 0.1 MPa) Protection Grade IP67 Explosion-proof Grade Ex ia IIB T4 Ga Customized Support OEM, ODM, OBM
