High Precision UWB Positioning Base Station – GAOTek

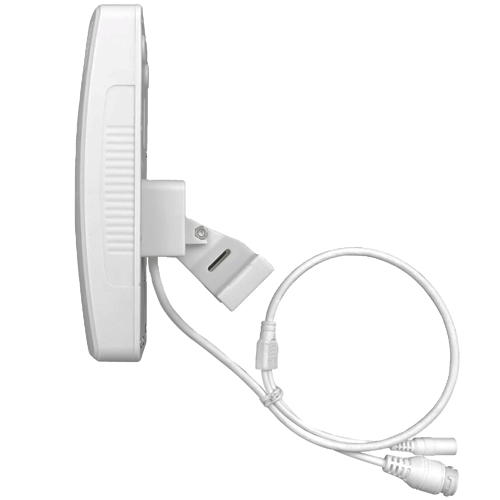

Description Overview Gaotek High-Precision UWB Positioning Base Station On UWB (Ultra-Wide Band) Technology. The White Curved Surface Design Can Be Perfectly Integrated With The Indoor Environment, And The Unique Waterproof Structure Also Has The Same Performance Outdoors; Enhanced RF Transmission And Reception Performance, So That It Has Wider Coverage And Higher Positioning Accuracy; POE Power Supply Reduces The Layout Of The Power Cord And Reduces Construction Difficulty.   Technical Specifications Chipset DW 1000 Application Indoor Positioning Power Supply 5.0 V (4.5 V To 5.5V) Support Protocol Compatible With IEEE802.15.4 To 2011 UWB Protocol Color White Data Upload Method 100 Mbps Ethernet Typical Transmit Power -6 Dbm Or 500 Mhz (CH2) Data Transmission Rate Default 6.8 Mbps Support 110 Kbps,850 Kbps POE Power Supply Standard: Cat.5 And Above (POE Output Power Is Greater Than 1W) DC Power Supply Input Voltage 5.0V (4.5 V To 5.5V), Input Power Greater Than 1W Support Protocol Compatible With IEEE802.15.4 To 2011 UWB Protocol Frequency Default 3774 To 4243.2mhz, Support Channel Ch1-5 Positioning System Can Switch Frequency Channel Typical Transmit Power -6 Dbm Or 500 Mhz (CH2) Receive Sensitivity -105 Dbm (Packet Loss Rate 10%, CH2) Data Transmission Rate Default 6.8Mbps Support 110Kbps,850kbps Positioning Accuracy <11.81 In (30 Cm) (No Obstruction Between Base Station And Tag) Recommended Base Station Layout Interval <164.04 Feet (50 M) Data Upload Method 100 Mbps Ethernet Base Station Clock Synchronization Method UWB Wireless Synchronization Waterproof Rating IP67 Working Temperature -22 °F To 158 °F (-30℃ To 70℃) Storage Temperature -40 °F To 185 °F (-40℃ To 85℃) Structure Size 7.01 In (17.8 Cm) Long, 3.70 In (9.4 Cm) Wide, 2.28 In (5.8 Cm) Thick (Except The Thickest Part Of The Bracket) Dimension Error ± ± 0.08 In (± 0.2 Cm) Weight 10 Oz (285 G) (±10 G) {0.285 Kg (±0.01 Kg)}
