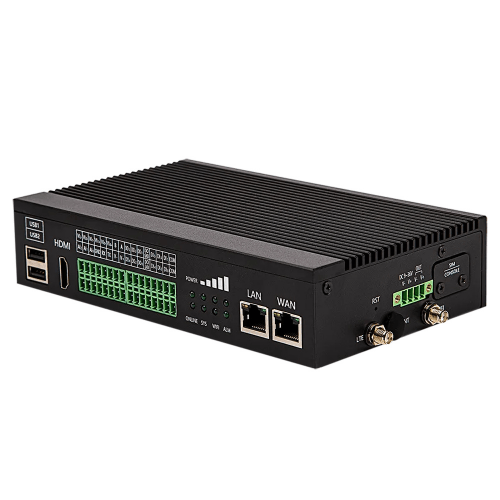

Description Overview GAOTek LoRa WAN industrial gateway with sim card is an industrial edge computing gateway designed for IoT applications. Powered by Raspberry Pi CM4. Expanded I or O ports for industrial needs, diverse connectivity options, and ture IPC-grade enclosure. These allow it to be perfect for IoT Gateway, data acquisition, Industrial Controller, Edge Computing Applications. It features powerful edge computing capabilities, equipped with RS 232, RS 485, DI, DO, and ADC typical industrial interfaces. It realizes data processing at the network edge in real time for high-performance IoT deployments. significantly reduces the data flow between field sites and data center. Technical Specifications CPU RPI CM 4, Quad core A 72 (ARM V 8) and 1.5 GHz Memory 1 GB, 2 GB, 4 GB and 8 GB options LPDDR 4 Flash 8 GB, 16 GB and 32 GB options EMMC Cellular 1 x mPCIe for 4G LTE, 3G, 2G, NB-IoT, CAT-M1 cellular modules Ethernet 2 x Gigabit Ethernet, (1 WAN, 1 LAN or 2 LAN Configurable) Wi Fi Dual Band 2.4 GHz, 5 GHz Bluetooth 5.0 GPS Cellular Module built in supported (Optional) Serial Ports Isolated RS 232 x 1, RS 485 x 1 USB USB 2.0 x 2 for peripherals Power Supply 9 V to 36 V DC, 1 A, recommended 24 V, 1.5 A Enclosure Full Aluminium, IP 30, DIN rail Operating Temperature -13 °F to 158 °F (-25 °C to 70 °C), (industrial grade) Dimensions 7.36 in x 4.40 in x 1.65 in (187 mm x 112 mm x 42 mm) Weight 1.72 lb (780 g)
