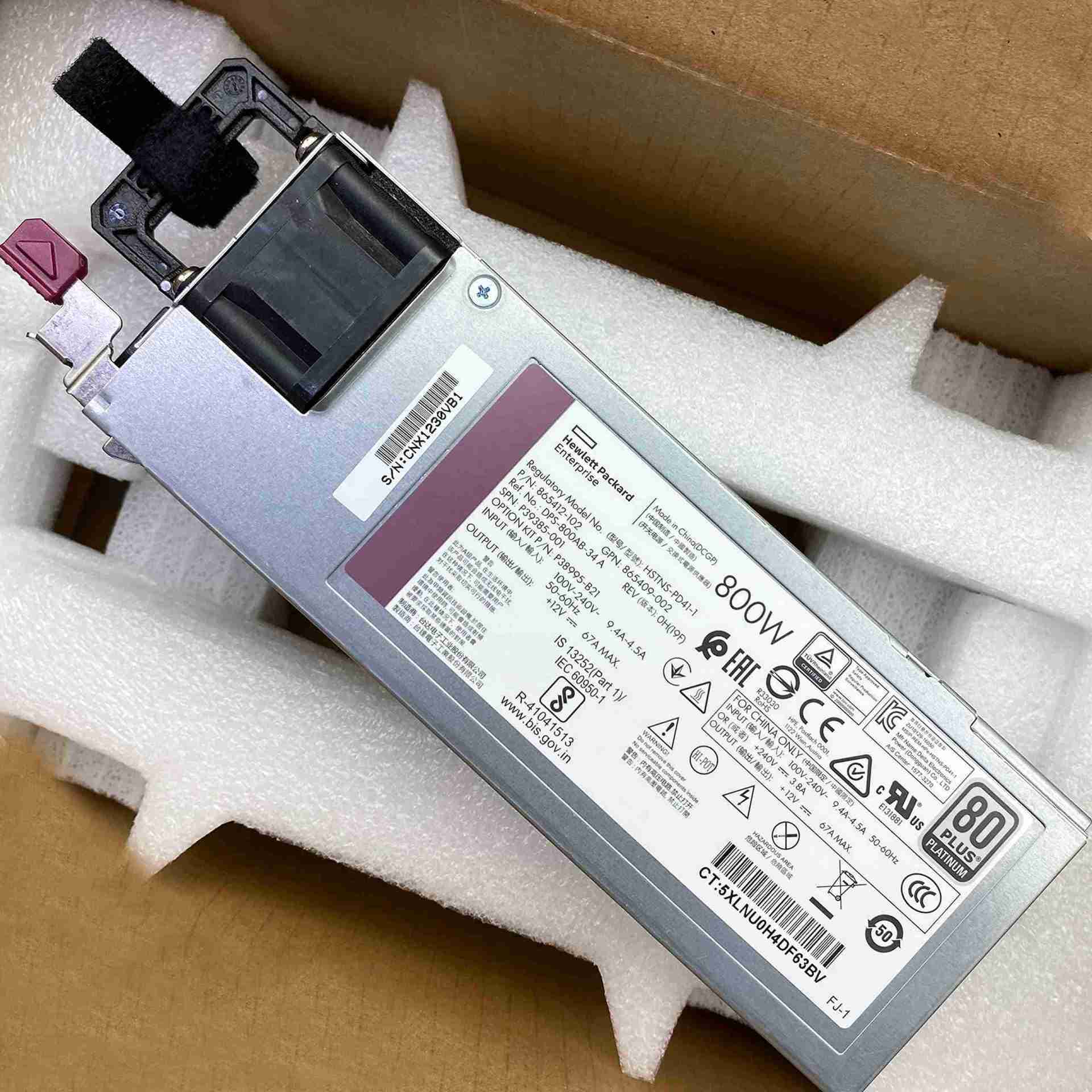

HPE 800W FS Plat Ht Plg LH Pwr Sply Kit – 865414-B21ConnectivityConnector: Power IEC 60320 C14ContentsPower supply kit, documentationGeneralColor: SilverForm Factor: Plug-in moduleWeight Taxonomy: 3.99lbsPowerPower Capacity (VA): 908VAPower Provided: 800Power Provided: 800WPower NotesInput Voltage Range (V rms): 100-240 Frequency Range (Nominal) ( Hz ): 50-60 Maximum Rated Output Wattage Rating (Watts): 800 Nominal Input Current ( A rms ): 3.6-9.1 Maximum Rated Input Wattage Rating (Watts): 864-899 Maximum Rated VA (Volt-Amp): 873-908 Efficiency (%): 89-92.6 Power Factor: 0.99 Leakage Current (mA): 0.33-0.78 Maximum Inrush Current (A peak): 30 Maximum Inrush Current Duration (ms): 10 Maximum British Thermal Unit Rating (BTU-Hr): 2949-3067 Power Inlet Connector: Standard C14Returns PolicyThis product is subject to our return policy. Please see our complete return policy for details.Shipping Weight3.02 lbsStandardsCompliant Standards: BSMICompliant Standards: CCCCompliant Standards: CECompliant Standards: CISPR Class ACompliant Standards: C-TickCompliant Standards: CULCompliant Standards: KCCCompliant Standards: Low HalogenCompliant Standards: TUVCompliant Standards: ULCompliant Standards: WEEEUNSPSC39121004Warranty – LaborCall for WarrantyWarranty – PartsCall for Warranty865414-B21 HPE 800W Flex Slot Platinum OverviewHPE 865414-B21 is the HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit. It is supported across the HPE ProLiant Gen10, HPE ProLiant 300 Gen9 server series families, HPE Apollo 2000 and HPE Apollo 4000 series, simplifying your spares strategy and further reducing data center costs.Quick SpecTable 1 shows the quick spec.Model865414-B21Input voltage100V – 240V ACPower output800WEfficiency94%Minimum dimensions ( H x W x D)20.32 x 33.02 x 10.16 cmProduct DetailsHPE Flexible Slot Power Supplies provide these features:· Up to 96% power efficiency with 80PLUS Platinum-certified power supplies that lower server power requirements and reduce power waste in your data center1.· The power supply form factor is 25% smaller than previous generation HPE Common Slot Power Supplies, providing more space to add additional server options and improve IT performance.· Fast, tool-less hot plug access to server power supplies for greater serviceability.· Supported across all HPE ProLiant Gen10 server series, HPE ProLiant 300 Gen9 server series, HPE Apollo 2000, and HPE Apollo 4000 server series, simplifying your spares strategy and reducing data center costs.Supported PlatformsTable 2 shows the recommended models.ModelDescription826682-B21HPE ProLiant DL380 Gen9 E5-2620v4 2.1GHz 8-core 1P 16GB-R P440ar 8SFF 500W PS Base Server867448-S01HPE ProLiant DL380 Gen9 E5-2620v4 1P 16GB-R P440ar 8SFF 500W PS Server/S-Buy848774-B21HPE ProLiant DL380 Gen9 E5-2630v4 2.2GHz 10-core 1P 16GB-R P440ar 8SFF 500W PS Base Server850519-S01HPE ProLiant DL380 Gen9 E5-2650v4 1P 32GB-R P440ar 8SFF 2x500W PS Server/SB826684-B21HPE ProLiant DL380 Gen9 E5-2650v4 2.2GHz 12-core 2P 32GB-R P440ar 8SFF 2x10Gb 2x800W Perf Server867449-S01HPE ProLiant DL380 Gen9 E5-2620v4 1P 16GB-R P840ar 12LFF 2x800W PS Server/S-Buy826683-B21HPE ProLiant DL380 Gen9 E5-2620v4 2.1GHz 8-core 1P 16GB-R P840ar 12LFF 2x800W PS Base Server850517-S01HPE ProLiant DL380 Gen9 E5-2609v4 1P 8GB-R H240ar 8SFF 500W PS Server/SB875668-425HPE ProLiant DL380 Gen10 4110 1P 16GB-R P408i-a 8SFF 500W DVD PS Server/TV875760-S01HPE ProLiant DL380 Gen10 4110 1P 16GB-R P408i-a 8SFF 1x500W PS Server/S-BuyP06420-B21HPE Proliant DL380 Gen10 4110 1P 16GB-R P408i-a 8SFF 500W PS Performance ServerP05524-B21HPE ProLiant DL380 GEN10 4110 1P 16GB-R P408i-a 8SFF 500W RPS SOLUTION SERVERP06421-B21HPE ProLiant DL380 Gen10 4114 1P 32GB-R P408i-a 8SFF 800W PS Performance Server826565-B21HPE ProLiant DL380 Gen10 4114 1P 32GB-R P408i-a 8SFF 500W PS Base Server875761-S01HPE ProLiant DL380 Gen10 5115 1P 16GB-R P408i-a 8SFF 1x500W PS Server/S-Buy875759-S01HPE ProLiant DL380 Gen10 4112 1P 16GB-R P408i-a 8LFF 1x500W PS Server/S-Buy867961-B21HPE ProLiant DL360 Gen10 3106 85W 1P 16G-2R S100i 8SFF 1x500W Entry Server875838-425HPE ProLiant DL360 Gen10 4110 85W 1P 16G-2R P408i-a 8SFF 1x500W Server/TV874457-S01HPE ProLiant DL360 Gen10 4110 85W 1P 16G-2R P408i-a 8SFF 1x500W Server/S-BuyP06453-B21HPE ProLiant DL360 Gen10 4110 85W 1P 16G-R P408i-a 8SFF 1x500W PS Performance ServerP05520-B21HPE ProLiant DL360 Gen10 4110 85W 1P 16GB-R P408i-a 8SFF 500W RPS Solution Server867962-B21HPE ProLiant DL360 Gen10 4114 85W 1P 16G-2R P408i-a 8SFF 1x500W Base Server867447-S01HPE ProLiant DL360 Gen9 E5-2620v4 1P 16GB-R P440ar 8SFF 500W PS Server/S-Buy818208-B21HPE ProLiant DL360 Gen9 E5-2630v4 1P 16GB-R P440ar 8SFF 500W PS Base SAS ServerKey FeaturesHPE Flexible Slot Power Supplies provide up to 96% power efficiency with 80PLUS Platinum-certified power supplies that lower server power requirements and reduce power waste in your data center.The power supply form factor is 25% smaller than previous generation HPE Common Slot Power Supplies, providing more space to add additional server options and improve IT performance.Provides fast, tool-less hot plug access to server power supplies for greater serviceability.Supported across HPE ProLiant Gen10 server series, HPE ProLiant 300 Gen9 server series, HPE Apollo 2000, and HPE Apollo 4000 server series, simplifying your spares strategy and reducing data center costs.1 year limited warrantyQuick LinksHPE 32GB 2Rx4 PC4-2933Y-R Smart KitXPOS 330II Thermal Receipt PrinterHP HPE ProLiant Servers in KenyaHPE ProLiant ML10 Gen 9 ServerGalvanized HT wire in KenyaBosch Wet Dry Extractor GAS 15 PS Professional
