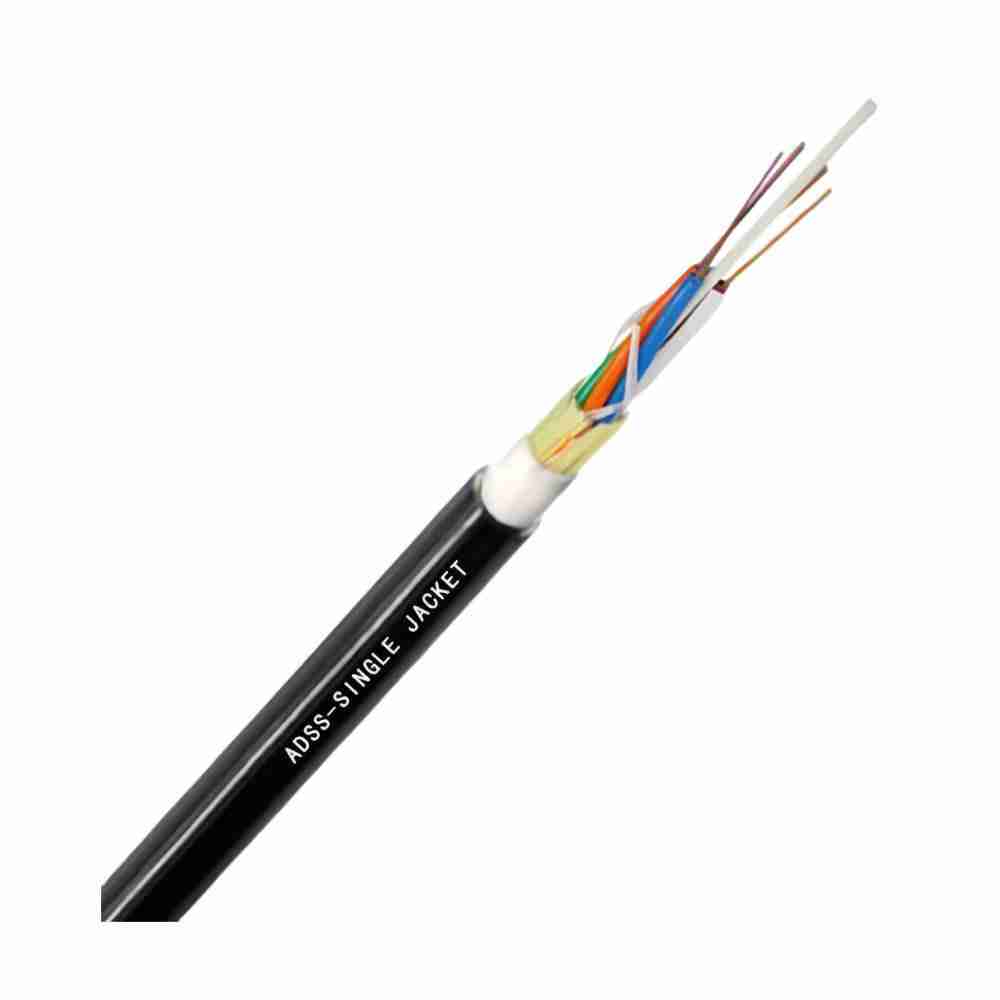

Fiber FTTX ADSS 12F Cable Per KM – 100 Meters Span

Fiber FTTX ADSS 12F Cable Per KM – 100 Meters SpanCable Type: The ODSS 12 F is a loose tube cable, meaning that the fibers are contained within individual tubes within the cable.Fiber Count: This particular ODSS cable has 12 fibers. This means that it can transmit and receive data from up to 12 different locations.Cable Length: The ODSS 12 F is available in various lengths depending on the requirements of the installation.Fiber Type: The ODSS 12 F uses single-mode fibers (SMF) which allow for high-speed data transmission over long distances.1). Optical Fiber Color:Fiber No.1234567891011126 C/TBlueOrangeGreenBrownGreyWhite–––––– 2). PBT Loose Tube Color:Tube No.12345678910111212 FBlueOrange–––––––––– 3). Structure:ItemUnitParameterOptical FiberCount12FRP Central Strength Membermm2 ± 0.05PE Layermm–PBT Loose TubeCount2PBT Loose Tube Diametermm1.8 ± 0.05Fibers per TubeCount6Filler RodsCount4Water Blocking Tapemm18 ± 1Glass YarnCount14Ripcord (3000D)Count1MDPE Jacket Thicknessmm1.7 ± 0.1Cable Diametermm9.2 ± 0.3Cable Weightkg/km85 ± 5 2. Product Mechanical Performance Parameters:ItemUnitParameterSpanm100Ice Thicknessmm5Wind Speedm/s25Max. Allowable Tension (MAT)N2000Rated Tensile Strength (RTS)N5000Extreme Dynamic Strength (EDS)N1250Young’s ModulusGPa8.2Coefficient of Linear Expansion1/°C9.3 × 10⁻⁶Long-term Crush ResistanceN/100mm1000Short-term Crush ResistanceN/100mm2000Static Bending Radiusmm20DDynamic Bending Radiusmm30DStorage Temperature℃-40 to 70Installation Temperature℃-10 to 70Operating Temperature℃-40 to 70 3. Optical Characteristic Parameters:ItemParameterOptical Fiber TypeG.652D (9/125 µm)Attenuation Coefficient@1310 nm≤0.36 dB/km@1383 nm≤0.36 dB/km@1550 nm≤0.22 dB/km@1625 nm≤0.22 dB/kmChromatic Dispersion@1285-1340 nm≤3.4 ps/(nm·km)@1550 nm≤18 ps/(nm·km)@1625 nm≤22 ps/(nm·km)Effective Group Refractive Index@1310 nm1.467@1550 nm1.467Polarization Mode Dispersion≤0.1 ps/√kmMode Field Diameter @1310 nm9.0 ± 0.3 µmCladding Diameter125.0 ± 1.0 µmCladding Non-Circularity≤1.0%Core/Cladding Concentricity Error≤0.9 µmCoating Diameter245 ± 7 µmCore Non-Circularity≤6.0%Coating/Cladding Concentricity Error≤12.0 µmCable Cut-Off Wavelength≤1260 nmZero Dispersion Wavelength1312 ± 12 nmDispersion Slope0.091 ps/(nm²·km) 4. Product Standards:YD/T 901-2018DL/T 788-2016ITU-T G.652DQuick LinksLIACC Fiber Optic Access cable ADSS 12 cores, Short Span 80m (ADSS-CT25)12 Core Multi | Single Mode Outdoor Fiber Cable6 Core Multi | Single Mode Outdoor Fiber CableFibre cable Outdoor 12 Core Multi mode per metreCisco GLC-LH-SMD Compatible SFP Module 1GbE Single Mode Fiber Optic Transceiver
